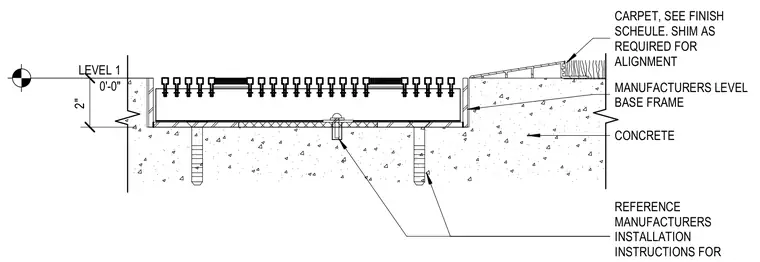

An entrance mat assembly is set into a two-inch recessed concrete slab at Level One. A manufacturer's level base frame sits within the recess, anchored and shimmed as required for alignment. Adjacent flooring consists of carpet verified against the finish schedule, transitioning flush with the mat frame.
MANUFACTURERS LEVEL BASE FRAME CONCRETE 0'-0" LEVEL 1 REFERENCE MANUFACTURERS INSTALLATION INSTRUCTIONS FOR CARPET, SEE FINISH SCHEULE. SHIM AS REQUIRED FOR ALIGNMENT 2"
