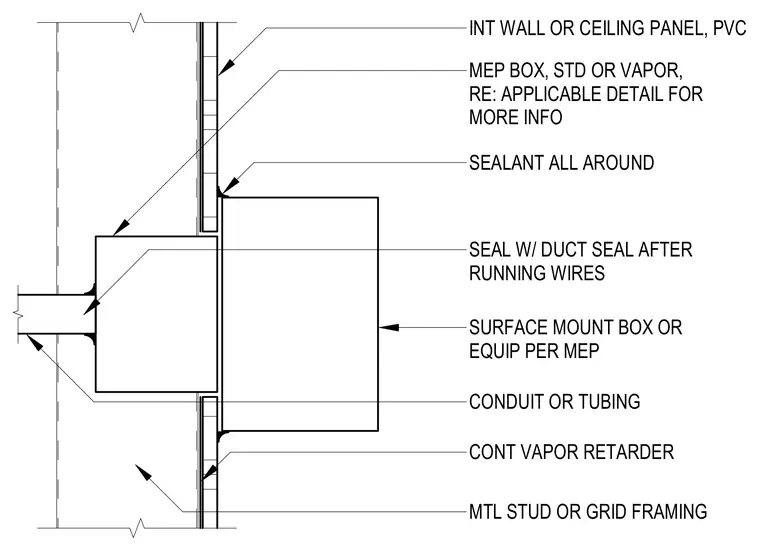

A surface mounted mechanical, electrical, or plumbing box or equipment mounts to an interior PVC wall or ceiling panel over metal stud or grid framing. A continuous vapor retarder runs behind the panel. Conduit or tubing enters the box from behind the framing. Sealant is applied all around the perimeter of the box where it meets the panel. Duct seal is applied inside the box after running wires.
INT WALL OR CEILING PANEL, PVC MEP BOX, STD OR VAPOR, RE: APPLICABLE DETAIL FOR MORE INFO SURFACE MOUNT BOX OR EQUIP PER MEP CONT VAPOR RETARDER MTL STUD OR GRID FRAMING CONDUIT OR TUBING SEALANT ALL AROUND SEAL W/ DUCT SEAL AFTER RUNNING WIRES
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
