A non-rated metal stud wall intersects perpendicularly with a continuous rated metal stud partition. The framing requires maintaining the fire rating continuously at the intersection point where the non-rated partition meets the rated wall assembly.

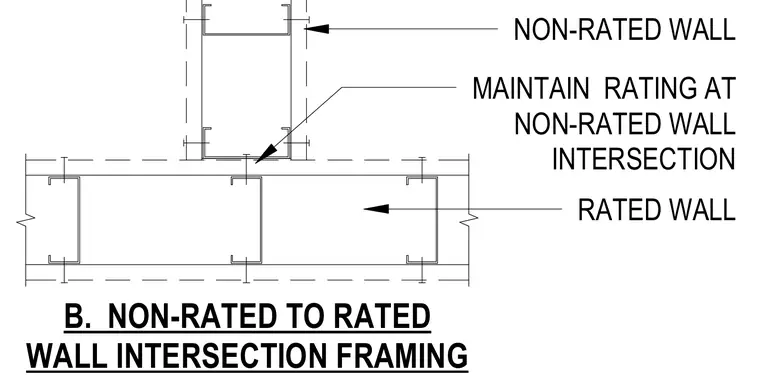

B. NON-RATED TO RATED WALL INTERSECTION FRAMING NON-RATED WALL RATED WALL MAINTAIN RATING AT NON-RATED WALL INTERSECTION
