Architectural · A-63EPB

Storefront Jamb at Fiber Cement and CMU Veneer

Materials

Elements

About this detail

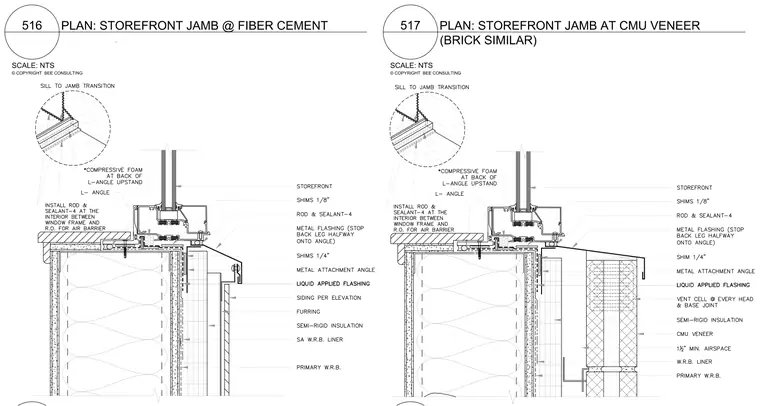

Storefront jamb and sill transition details at fiber cement siding and CMU veneer walls. The storefront frame is set with one-eighth-inch shims and one-quarter-inch shims against a metal attachment angle, sealed with backer rod and sealant, and secured over metal flashing stopping onto an L-angle upstand with compressive foam behind it. The exterior wall assembly incorporates liquid-applied flashing, self-adhering weather-resistive barrier liner, primary weather-resistive barrier, semi-rigid insulation, and furring supporting fiber cement siding in the first detail. The second detail replaces the siding with CMU veneer over a one-and-one-half-inch minimum airspace, weather-resistive barrier liner, primary weather-resistive barrier, semi-rigid insulation, and vent cells at every head and base joint.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
