The roof assembly consists of a single-ply roofing system applied over an air and vapor barrier and coverboard supported by a metal deck sized per structural drawings. The edge incorporates a gravel stop with a prefinished sheet metal cover and an eight-inch fascia drop. A continuous sheet metal closure runs along the top of the hollow structural section frame with a slope to drain. The underside of the canopy is finished with soffit panels secured over six-inch light-gauge soffit framing spaced at sixteen inches on center. The hollow structural section perimeter frame is painted.

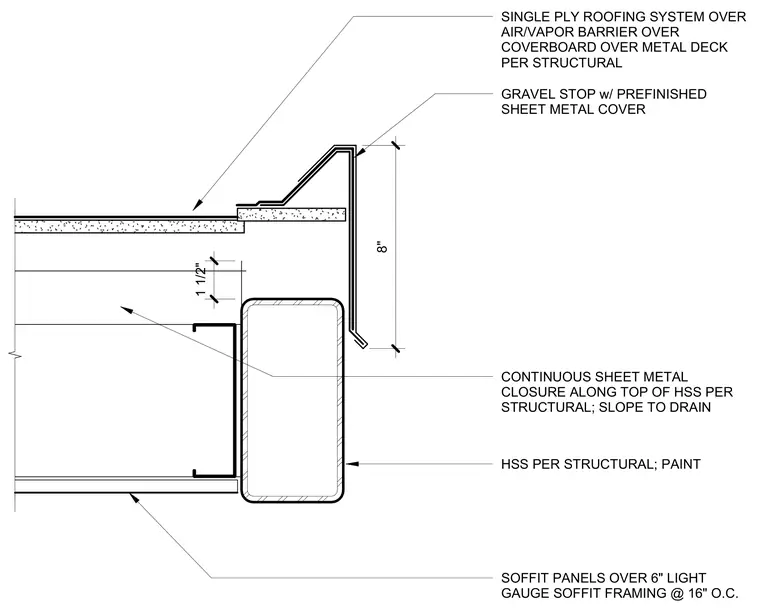

HSS PER STRUCTURAL; PAINT SOFFIT PANELS OVER 6" LIGHT GAUGE SOFFIT FRAMING @ 16" O.C. SINGLE PLY ROOFING SYSTEM OVER AIR/VAPOR BARRIER OVER COVERBOARD OVER METAL DECK PER STRUCTURAL GRAVEL STOP w/ PREFINISHED SHEET METAL COVER CONTINUOUS SHEET METAL CLOSURE ALONG TOP OF HSS PER STRUCTURAL; SLOPE TO DRAIN 8" 1 1/2"
