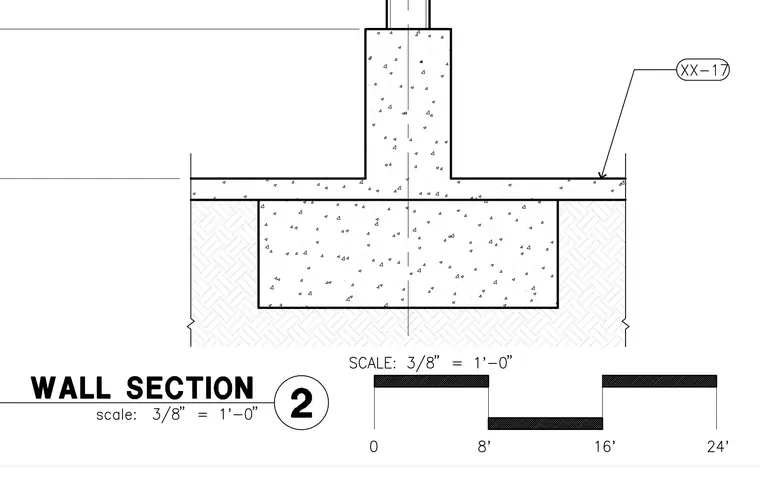

A reinforced concrete stem wall bears upon a continuous concrete spread footing set into compacted subgrade. A concrete slab on grade abuts the stem wall. A vertical structural member extends upward from the center of the stem wall. A detail reference bubble points to the slab on grade assembly.
