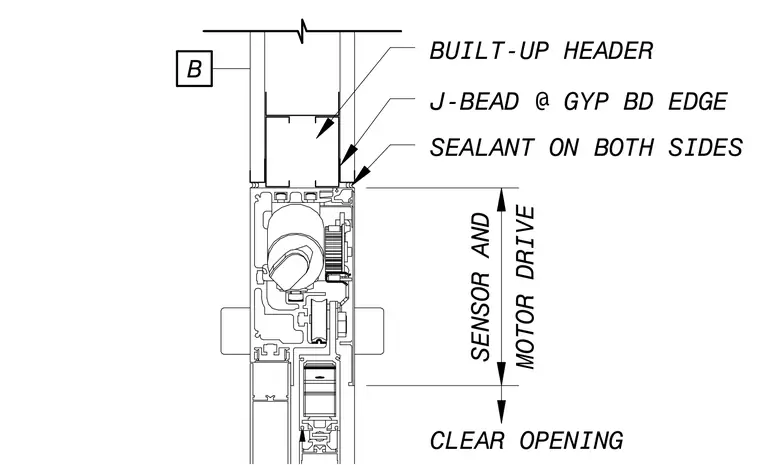

This automatic sliding door head detail integrates a built-in motor drive and sensor unit within an aluminum frame below a built-up header. Gypsum board edges terminate cleanly against the frame using J-bead trim, with sealant applied on both sides at the head interface. The door operator assembly sits concealed above the clear opening.
MOTOR DRIVE SENSOR AND CLEAR OPENING SEALANT ON BOTH SIDES J-BEAD @ GYP BD EDGE BUILT-UP HEADER B i 5 Hagg
