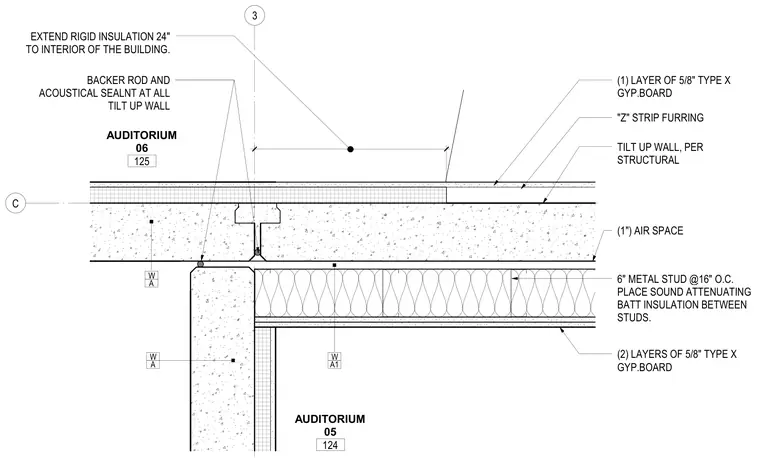

An acoustic partition wall meets a structural tilt-up concrete wall with a one-inch air space. The partition uses six-inch metal studs spaced at sixteen inches on center with sound-attenuating batt insulation placed between the studs. One face of the stud wall receives a single layer of five-eighths-inch Type X gypsum board on Z-strip furring, while the opposite side receives two layers of five-eighths-inch Type X gypsum board. A backer rod and acoustical sealant seal the joint at the tilt-up concrete wall. Rigid insulation extends twenty-four inches to the interior of the building.
3 C - (2) LAYERS OF 5/8" TYPE X GYP.BOARD (1) LAYER OF 5/8" TYPE X GYP.BOARD "Z" STRIP FURRING A W A W A1 W AUDITORIUM 06 125 AUDITORIUM 05 124 TILT UP WALL, PER STRUCTURAL (1") AIR SPACE 6" METAL STUD @16" O.C. PLACE SOUND ATTENUATING BATT INSULATION BETWEEN STUDS. BACKER ROD AND ACOUSTICAL SEALNT AT ALL TILT UP WALL EXTEND RIGID INSULATION 24" TO INTERIOR OF THE BUILDING.
