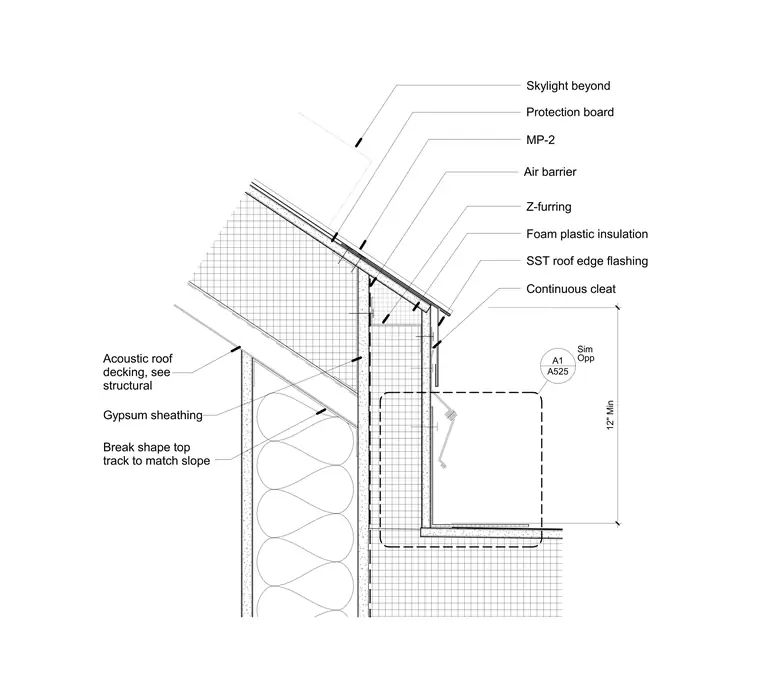

This roof monitor assembly features acoustic roof decking supported by a framed wall with gypsum sheathing and a break-shape top track sloped to match the roof. The vertical curb includes Z-furring, foam plastic insulation, an air barrier, and a protection board behind exterior metal panels designated MP-2. A stainless steel roof edge flashing ties into a continuous cleat at the roof-to-monitor transition. A skylight is positioned beyond, with a minimum twelve-inch vertical clearance dimension noted.
12" Min Protection board Gypsum sheathing Air barrier Continuous cleat Acoustic roof decking, see structural SST roof edge flashing A525 A1 Sim Opp MP-2 Skylight beyond Z-furring Foam plastic insulation Break shape top track to match slope
