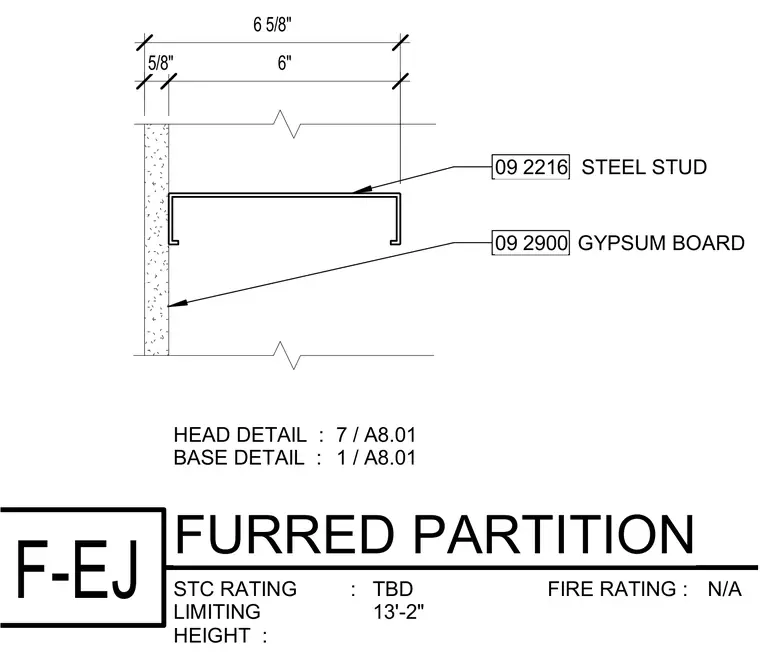

This furred partition detail consists of steel studs finished with gypsum board on one side. The assembly utilizes six-inch steel studs with a five-eighths-inch gypsum board layer, achieving a total thickness of six and five-eighths inches and a limiting height of thirteen feet two inches.
5/8" 6" 09 2216 STEEL STUD STC RATING : FIRE RATING : LIMITING HEIGHT : HEAD DETAIL : BASE DETAIL : F-EJ FURRED PARTITION TBD N/A 13'-2" 7 / A8.01 1 / A8.01 6 5/8" 09 2900 GYPSUM BOARD
