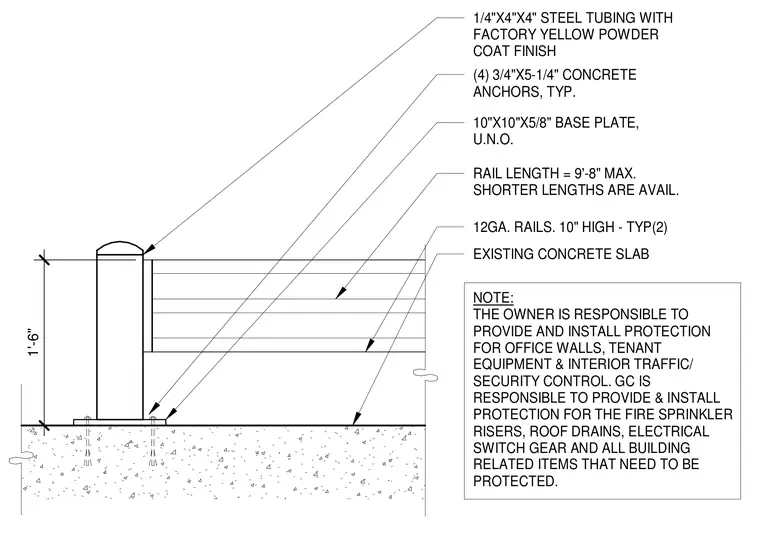

A surface-mounted steel guard rail assembly anchors to an existing concrete slab. The assembly features a 10-inch high, 12-gauge steel rail system supported by 1/4-inch by 4-inch by 4-inch steel tubing posts with a factory yellow powder coat finish. Each post sits on a 10-inch by 10-inch by 5/8-inch base plate secured by four 3/4-inch by 5-1/4-inch concrete anchors. Maximum rail length is 9 feet 8 inches with shorter lengths available. Project notes outline owner and general contractor responsibilities for protecting building elements and equipment.
RAIL LENGTH = 9'-8" MAX. SHORTER LENGTHS ARE AVAIL. 12GA. RAILS. 10" HIGH - TYP(2) 1/4"X4"X4" STEEL TUBING WITH FACTORY YELLOW POWDER COAT FINISH 10"X10"X5/8" BASE PLATE, U.N.O. (4) 3/4"X5-1/4" CONCRETE ANCHORS, TYP. EXISTING CONCRETE SLAB NOTE: THE OWNER IS RESPONSIBLE TO PROVIDE AND INSTALL PROTECTION FOR OFFICE WALLS, TENANT EQUIPMENT & INTERIOR TRAFFIC/ SECURITY CONTROL. GC IS RESPONSIBLE TO PROVIDE & INSTALL PROTECTION FOR THE FIRE SPRINKLER RISERS, ROOF DRAINS, ELECTRICAL SWITCH GEAR AND ALL BUILDING RELATED ITEMS THAT NEED TO BE PROTECTED. 1'-6"
