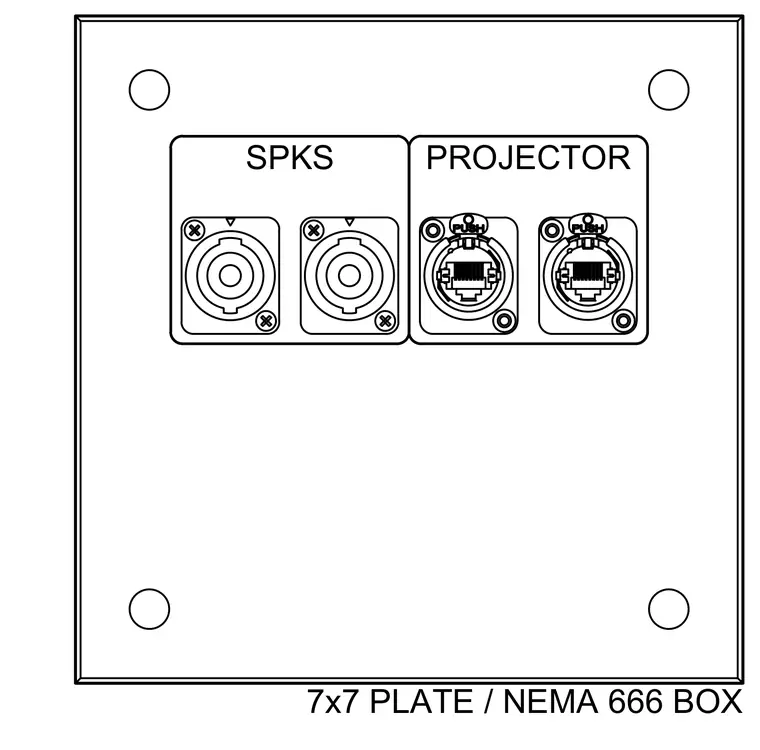

A seven by seven inch steel mounting plate houses a National Electrical Manufacturers Association 666 box configured for audio-visual connections. The assembly features two speaker connections labeled SPKS and two projector connections labeled PROJECTOR. Four mounting holes secure the cover plate at each corner.
