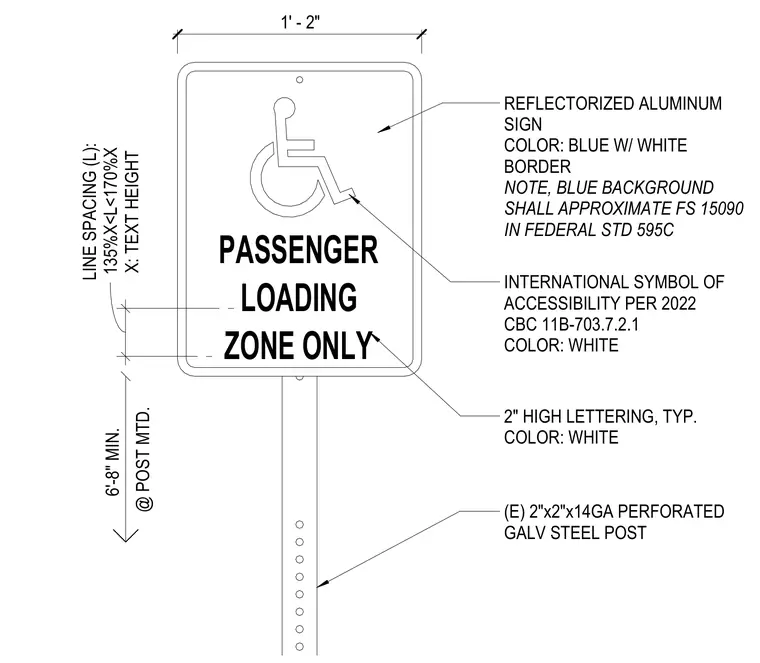

An existing two-inch by two-inch fourteen-gauge perforated galvanized steel post supports a reflectorized aluminum sign with a blue background and white border. The blue background matches federal standard color FS 15090. The sign features the international symbol of accessibility and the text PASSENGER LOADING ZONE ONLY in two-inch high white lettering. Minimum post mounting height is six feet eight inches to the bottom of the sign.
1' - 2" 2" HIGH LETTERING, TYP. COLOR: WHITE 6'-8" MIN. @ POST MTD. (E) 2"x2"x14GA PERFORATED GALV STEEL POST REFLECTORIZED ALUMINUM SIGN COLOR: BLUE W/ WHITE BORDER NOTE, BLUE BACKGROUND SHALL APPROXIMATE FS 15090 IN FEDERAL STD 595C INTERNATIONAL SYMBOL OF ACCESSIBILITY PER 2022 CBC 11B-703.7.2.1 COLOR: WHITE LOADING ZONE ONLY PASSENGER X: TEXT HEIGHT LINE SPACING (L): 135%X<L<170%X
