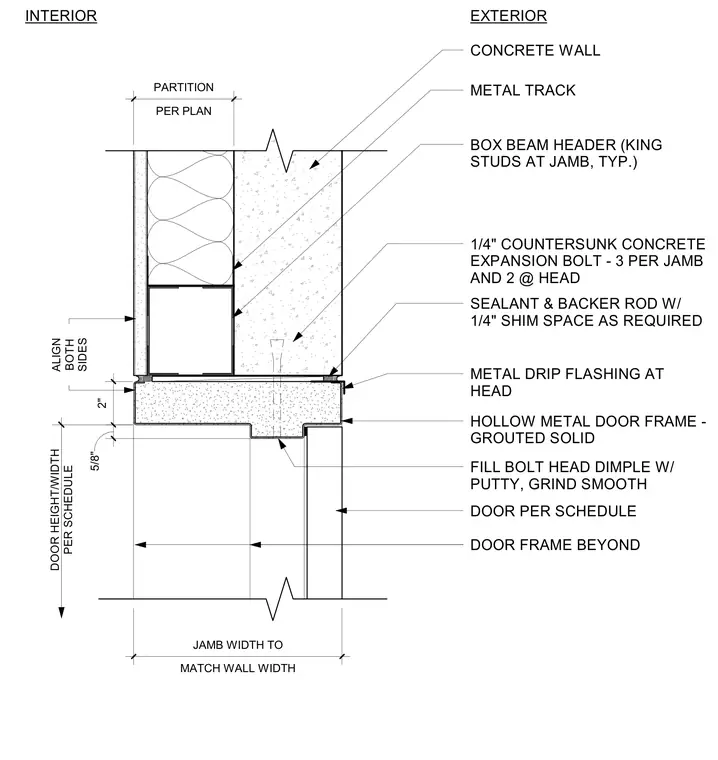

A hollow metal door frame is installed flush within a concrete wall opening and grouted solid. Three quarter-inch countersunk concrete expansion bolts anchor each jamb, with two at the head, leaving a quarter-inch shim space sealed with backer rod and sealant. Bolt head dimples are filled with putty and ground smooth. A metal drip flashing is provided at the head. A box beam header and king studs frame the interior partition matching the wall width.
5/8" 2" MATCH WALL WIDTH JAMB WIDTH TO DOOR HEIGHT/WIDTH PER SCHEDULE METAL DRIP FLASHING AT HEAD HOLLOW METAL DOOR FRAME - GROUTED SOLID DOOR PER SCHEDULE DOOR FRAME BEYOND CONCRETE WALL 1/4" COUNTERSUNK CONCRETE EXPANSION BOLT - 3 PER JAMB AND 2 @ HEAD SEALANT & BACKER ROD W/ 1/4" SHIM SPACE AS REQUIRED FILL BOLT HEAD DIMPLE W/ PUTTY, GRIND SMOOTH PER PLAN PARTITION METAL TRACK BOX BEAM HEADER (KING STUDS AT JAMB, TYP.) EXTERIOR INTERIOR ALIGN BOTH SIDES
