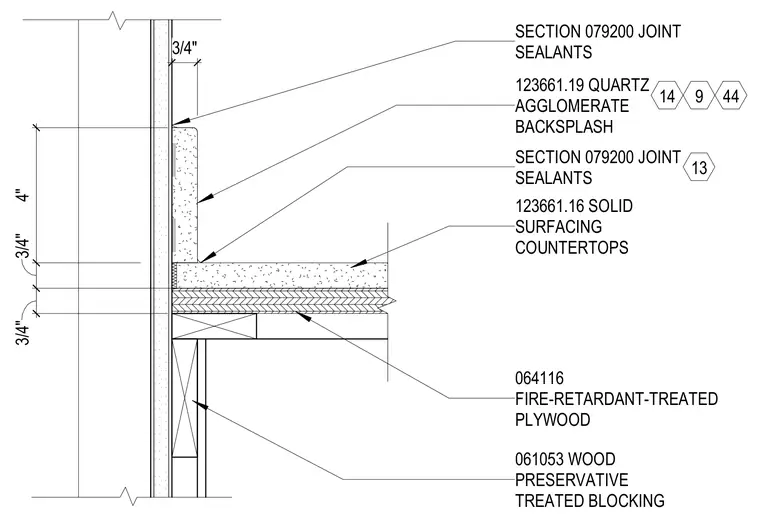

A quartz agglomerate backsplash finishes against the wall with joint sealants at the top edge. A solid surfacing countertop bears directly on fire-retardant-treated plywood and wood preservative-treated blocking. Joint sealants are detailed at the intersection of the countertop and the backsplash. Vertical dimensions space the four-inch high backsplash and three-quarter-inch thick countertop components.
061053 WOOD PRESERVATIVE TREATED BLOCKING SECTION 079200 JOINT SEALANTS 123661.16 SOLID SURFACING COUNTERTOPS 3/4" 3/4" 4" 3/4" 123661.19 QUARTZ AGGLOMERATE BACKSPLASH 14 13 064116 FIRE-RETARDANT-TREATED PLYWOOD SECTION 079200 JOINT SEALANTS 9 44
