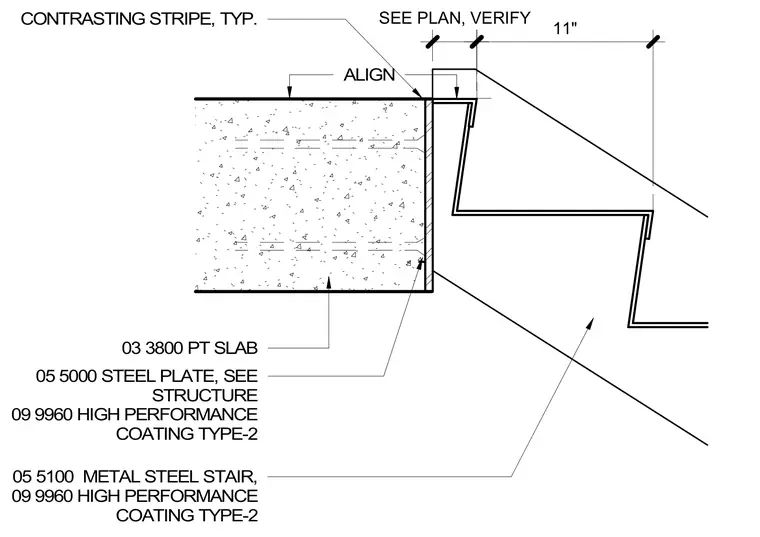

A metal stair connects to an eleven-inch post-tensioned concrete slab edge via a structural steel plate. The stair assembly receives a high-performance coating with a typical contrasting stripe at the nosing. The concrete slab edge and steel plate alignment are verified per plan.
05 5100 METAL STEEL STAIR, 09 9960 HIGH PERFORMANCE COATING TYPE-2 SEE PLAN, VERIFY 03 3800 PT SLAB 11" 05 5000 STEEL PLATE, SEE STRUCTURE 09 9960 HIGH PERFORMANCE COATING TYPE-2 CONTRASTING STRIPE, TYP. ALIGN
