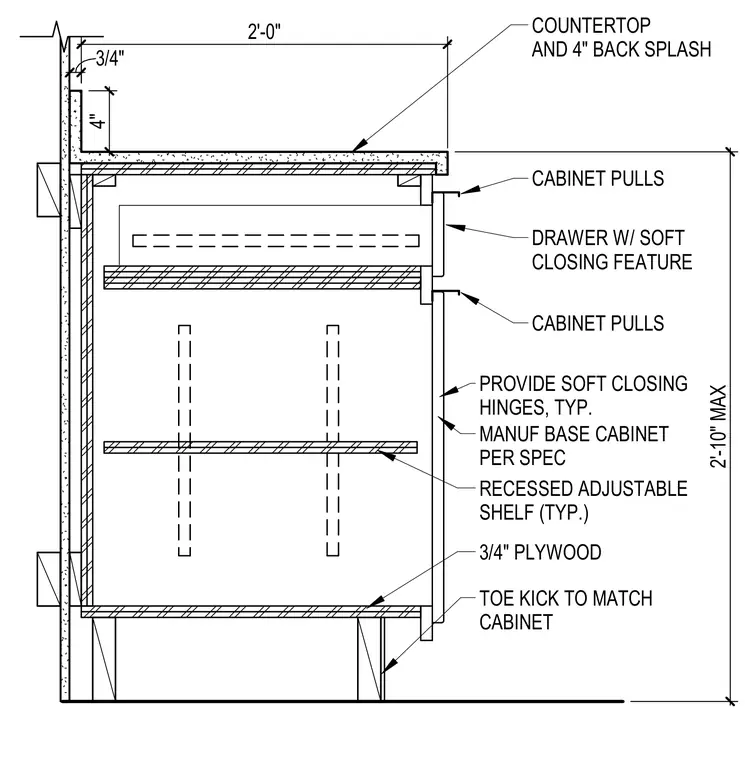

A manufactured base cabinet sits against the wall with a maximum height of two feet ten inches and a depth of two feet. The unit is constructed with three-quarter-inch plywood and includes a toe kick matching the cabinet at the base. A drawer with a soft-closing feature and cabinet pulls sits directly below the countertop, which features a four-inch back splash. The interior contains three-quarter-inch recessed adjustable shelves with typical soft-closing hinges provided on the doors.
2'-10" MAX 2'-0" 3/4" RECESSED ADJUSTABLE SHELF (TYP.) 4" MANUF BASE CABINET PER SPEC DRAWER W/ SOFT CLOSING FEATURE PROVIDE SOFT CLOSING HINGES, TYP. COUNTERTOP AND 4" BACK SPLASH TOE KICK TO MATCH CABINET 3/4" PLYWOOD CABINET PULLS CABINET PULLS
