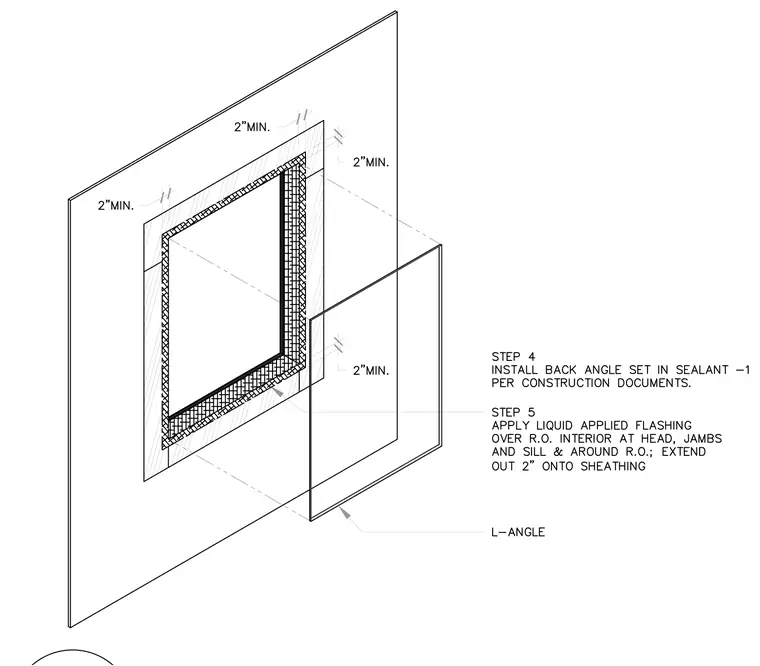

Step four installs a back angle set in sealant per construction documents. Step five applies liquid applied flashing over the rough opening interior at head, jambs, and sill, and around the rough opening, extending out two inches minimum onto the exterior sheathing. The louver installation maintains a two-inch minimum clearance from the rough opening edge to the sheathing boundary.
