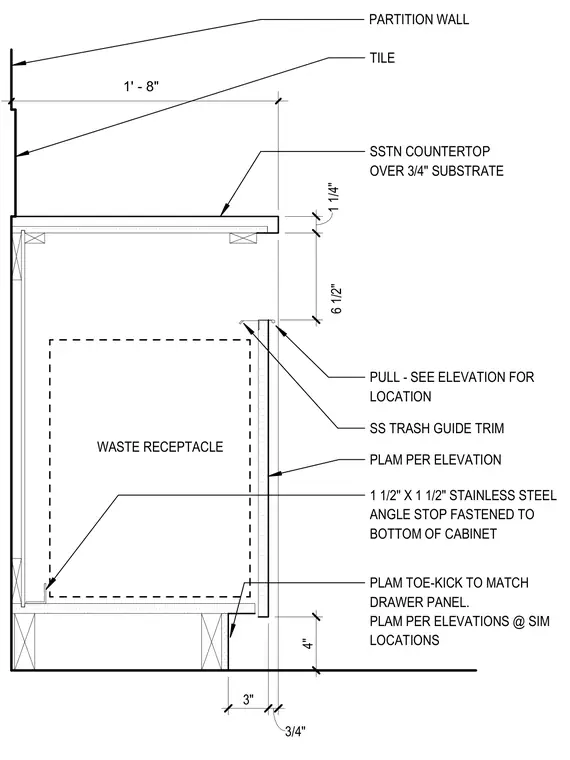

The casework assembly features a stainless steel countertop supported over a three-quarter inch substrate adjacent to a tiled partition wall. A stainless steel trash guide trim frames the drop opening, while a one-and-a-half by one-and-a-half inch stainless steel angle stop is fastened to the bottom of the cabinet to position the waste receptacle. The cabinet exterior is finished with plastic laminate with a matching toe-kick at the base.
1' - 8" 4 " 3 " 3 / 4 " 1 1 / 4 " 6 1 / 2 " SSTN COUNTERTOP OVER 3/4" SUBSTRATE TILE PARTITION WALL PULL - SEE ELEVATION FOR LOCATION WASTE RECEPTACLE 1 1/2" X 1 1/2" STAINLESS STEEL ANGLE STOP FASTENED TO BOTTOM OF CABINET PLAM TOE-KICK TO MATCH DRAWER PANEL. PLAM PER ELEVATIONS @ SIM LOCATIONS SS TRASH GUIDE TRIM PLAM PER ELEVATION
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
