Accessible Restroom Signage Details

About this detail

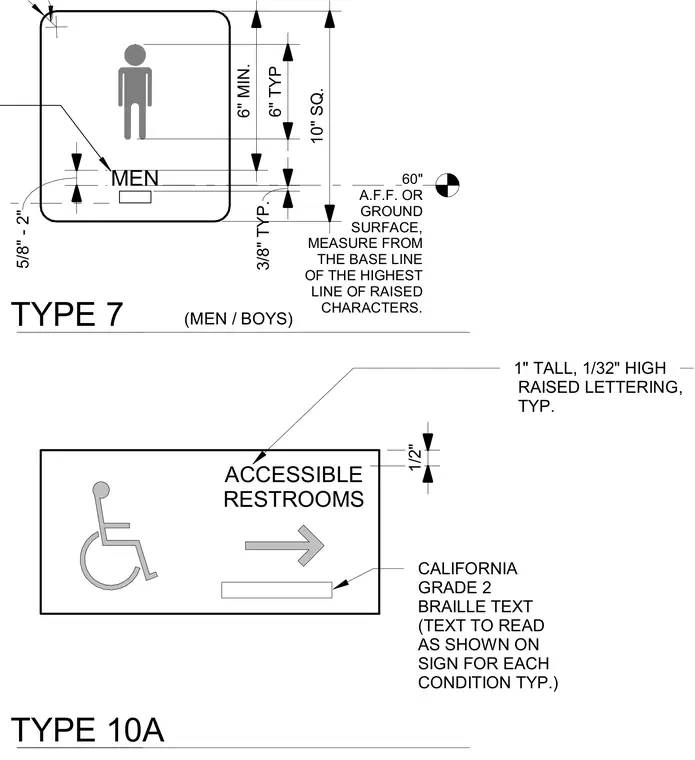

Accessible restroom signage details indicate standard layouts featuring ten-inch square signage with six-inch minimum spacing, one-inch tall raised lettering at one-thirty-second inch high, and California Grade 2 braille text. Signage must be mounted at sixty inches above the finished floor or ground surface, measured from the base line of the highest line of raised characters. Typographical layouts include pictograms for men and accessible wheelchair symbols with directional arrows.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
