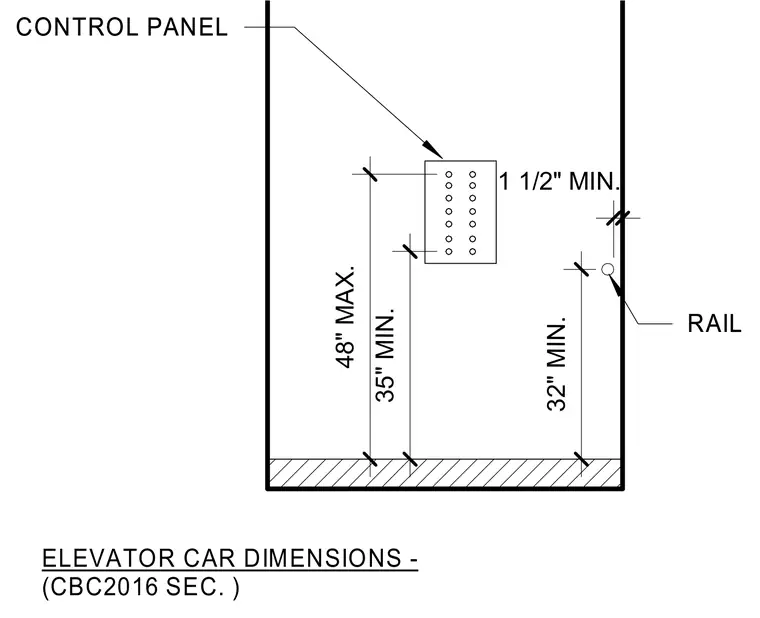

Elevator car interior wall elevation showing mounting heights for the control panel and grab rail. The control panel features vertical button arrangements with a minimum clearance of 1 1/2 inches from edges and is positioned between a minimum of 35 inches and a maximum of 48 inches above the finished floor. The grab rail is mounted at a minimum height of 32 inches from the finished floor.
48" MAX. RAIL 35" MIN. 32" MIN. 1 1/2" MIN. ELEVATOR CAR DIMENSIONS - (CBC2016 SEC. ) CONTROL PANEL RAIL CONTROL PANEL
