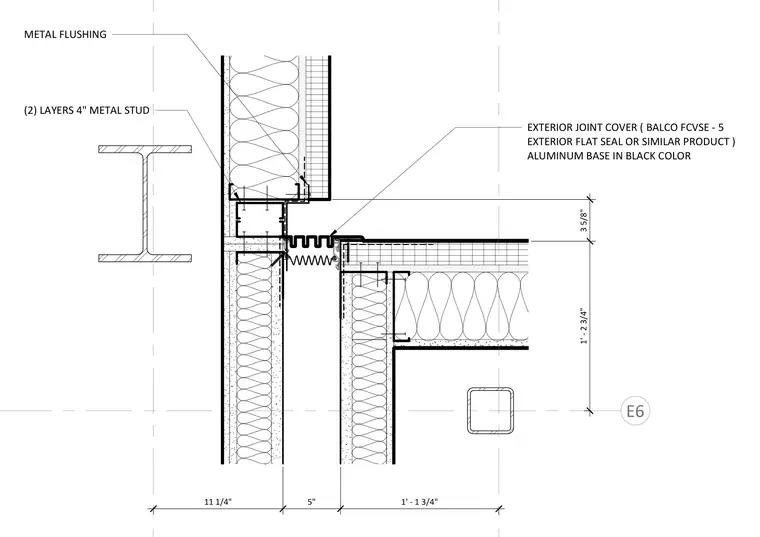

An exterior wall expansion joint cover assembly with an aluminum base in a black color connects two wall sections framed with two layers of four-inch metal studs. Metal flashing is incorporated at the transition alongside a Balco FCVSE-5 exterior flat seal or similar product. Vertical and horizontal dimensions locate the joint components relative to the structural framing.
E6 11 1/4" 5" 1' - 1 3/4" (2) LAYERS 4" METAL STUD METAL FLUSHING EXTERIOR JOINT COVER ( BALCO FCVSE - 5 EXTERIOR FLAT SEAL OR SIMILAR PRODUCT ) ALUMINUM BASE IN BLACK COLOR 3 5/8" 1' - 2 3/4"
