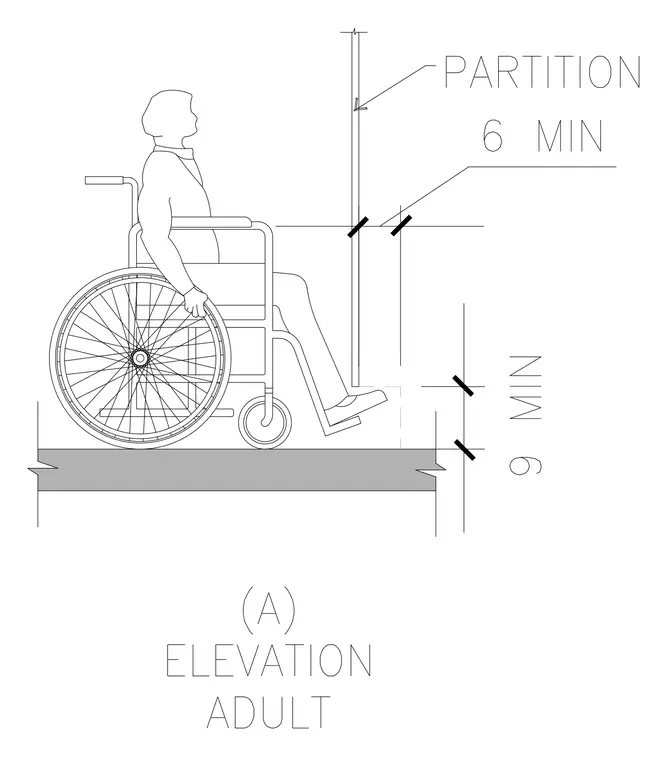

An adult in a wheelchair is positioned adjacent to a vertical partition wall above a floor slab, indicating minimum spatial clearances for accessibility compliance. Dimensions include a 6 minimum clearance above the wheelchair armrest level and a 9 minimum clearance near the footrest level.
