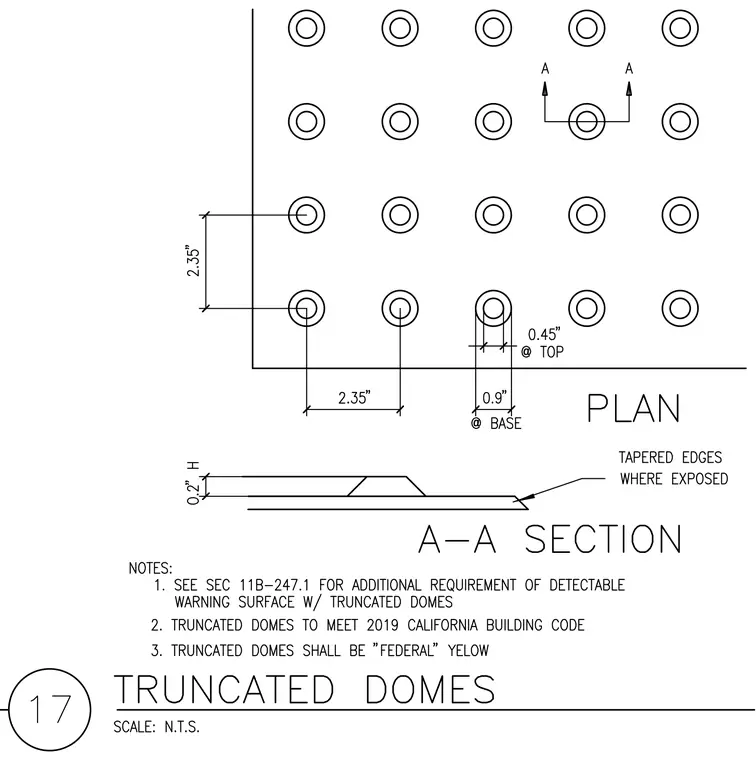

Detectable warning surface featuring a grid of truncated domes spaced at 2.35 inches on center in both directions. Individual domes measure 0.45 inches in diameter at the top and 0.9 inches in diameter at the base, with a height of 0.2 inches. The plate features tapered edges where exposed, and notes specify compliance with California Building Code Section 11B-247.1 with Federal Yellow color.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
Start membership
