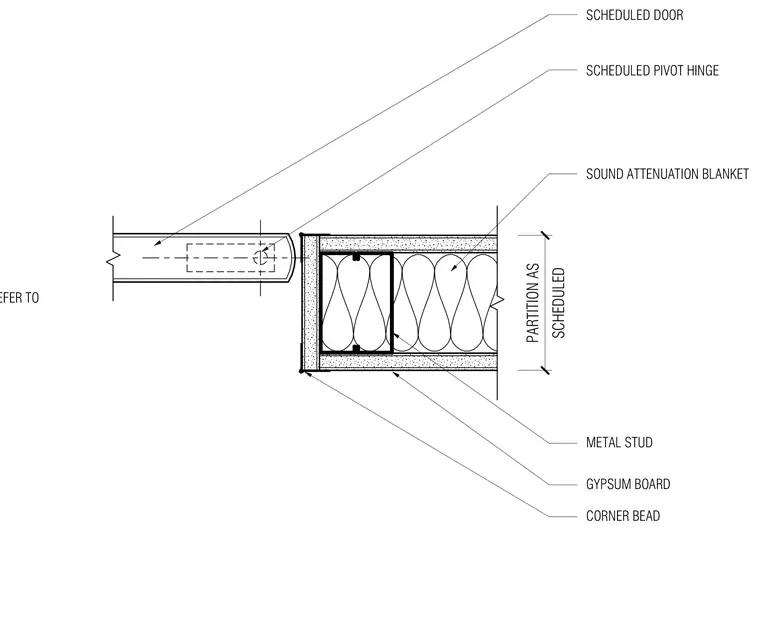

A scheduled pivot hinge connects the scheduled door to a cold-formed metal stud partition. The partition is framed with metal studs, faced with gypsum board on both sides, and includes a sound attenuation blanket for acoustic control. Corner beads finish the gypsum board edges at the jamb transition. Floor finish conditions are coordinated per schedule.
SCHEDULED PARTITION AS METAL STUD GYPSUM BOARD SOUND ATTENUATION BLANKET CORNER BEAD SCHEDULED PIVOT HINGE SCHEDULED DOOR FLOOR FINISH AS SCHEDULED. REFER TO
