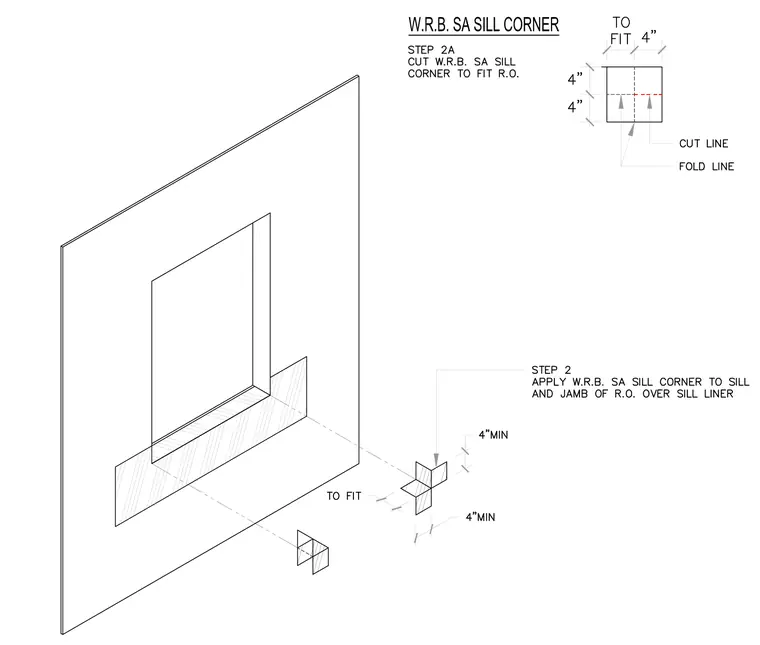

The self-adhered weather-resistant barrier sill corner is cut to fit the rough opening and applied to the sill and jamb over the sill liner. Four-inch minimum dimensions govern the overlap and fold lines of the membrane patch at the corner junction.
W.R.B. SA SILL CORNER
