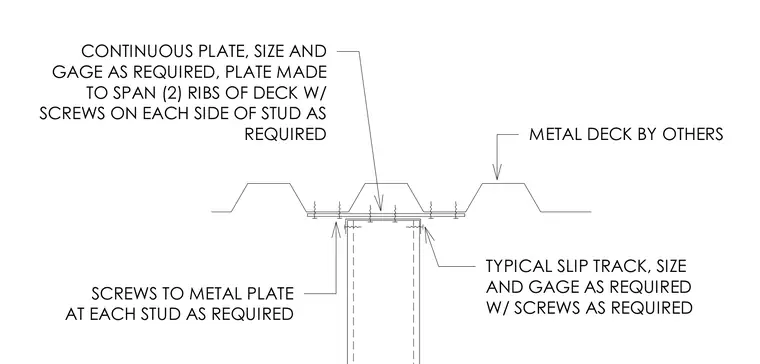

Cold-formed steel stud framing connects below a metal deck using a typical slip track sized as required with screws. A continuous plate spans two ribs of the metal deck and fastens to the stud framing with screws on each side of the stud. Additional screws secure the slip track to the metal plate at each stud.
METAL DECK BY OTHERS TYPICAL SLIP TRACK, SIZE AND GAGE AS REQUIRED W/ SCREWS AS REQUIRED SCREWS TO METAL PLATE AT EACH STUD AS REQUIRED CONTINUOUS PLATE, SIZE AND GAGE AS REQUIRED, PLATE MADE TO SPAN (2) RIBS OF DECK W/ SCREWS ON EACH SIDE OF STUD AS REQUIRED
