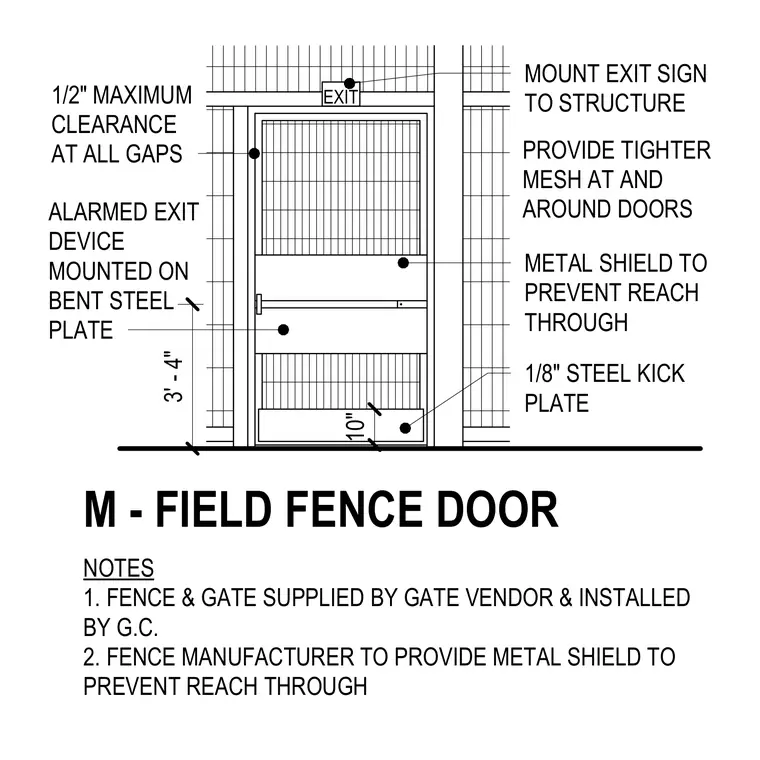

The fence and gate are supplied by the gate vendor and installed by the general contractor. A tighter mesh is provided at and around the doors, supplemented by a metal shield to prevent reach-through access. An alarmed exit device is mounted on a bent steel plate, with an exit sign mounted directly to the structure above. A one-eighth-inch steel kick plate is installed at the bottom of the door, and all gaps maintain a maximum clearance of one-half inch.
M - FIELD FENCE DOOR NOTES 1. FENCE & GATE SUPPLIED BY GATE VENDOR & INSTALLED BY G.C. 2. FENCE MANUFACTURER TO PROVIDE METAL SHIELD TO PREVENT REACH THROUGH EXIT 3' - 4" MOUNT EXIT SIGN TO STRUCTURE 1/2" MAXIMUM CLEARANCE AT ALL GAPS 10" ALARMED EXIT DEVICE MOUNTED ON BENT STEEL PLATE PROVIDE TIGHTER MESH AT AND AROUND DOORS METAL SHIELD TO PREVENT REACH THROUGH 1/8" STEEL KICK PLATE
