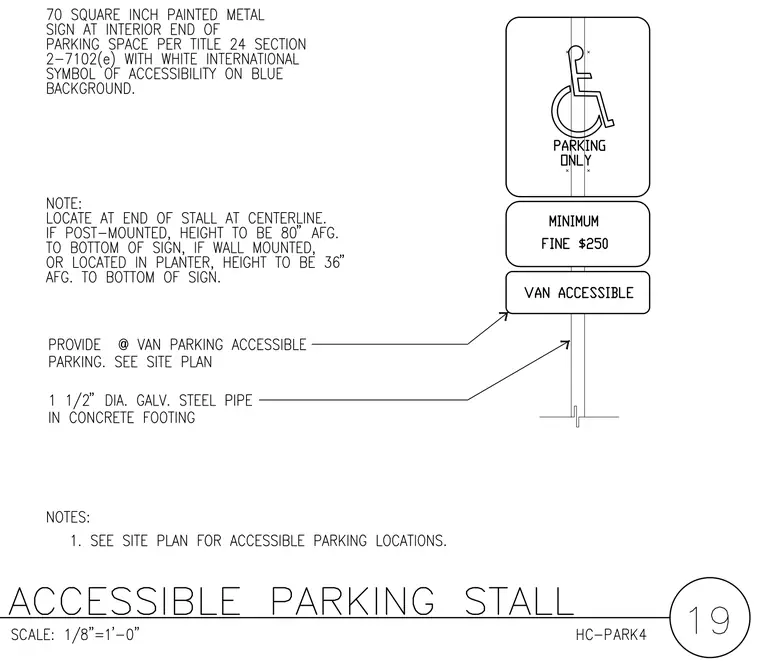

An accessible parking stall sign assembly consists of a seventy-square-inch painted metal sign with a white international symbol of accessibility on a blue background, supplemented by minimum fine and van accessible sub-plaques. The sign is mounted on a one-and-a-half-inch diameter galvanized steel pipe set into a concrete footing. When post-mounted, the bottom of the sign is located at eighty inches above finished grade, or thirty-six inches above finished grade if located in a planter. The sign is positioned at the interior end of the parking space along the centerline.
