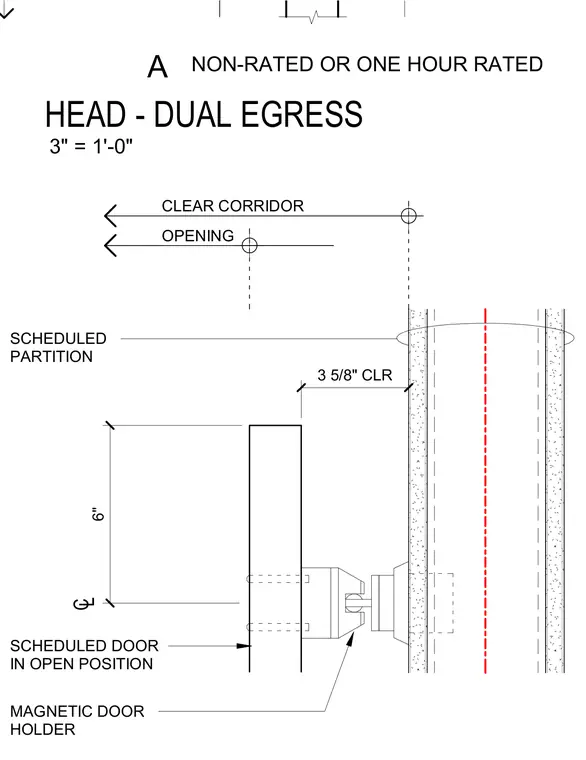

This architectural detail shows the head condition for a non-rated or one-hour-rated dual egress opening. The assembly features a scheduled partition connecting to a scheduled door in the open position. A magnetic door holder is mounted with a three and five-eighths inch clearance from the partition face and a six-inch dimension to the centerline.
NON-RATED OR ONE HOUR RATED A CLEAR CORRIDOR OPENING MAGNETIC DOOR HOLDER SCHEDULED DOOR IN OPEN POSITION 6" 3 5/8" CLR SCHEDULED PARTITION C L 3" = 1'-0" HEAD - DUAL EGRESS
