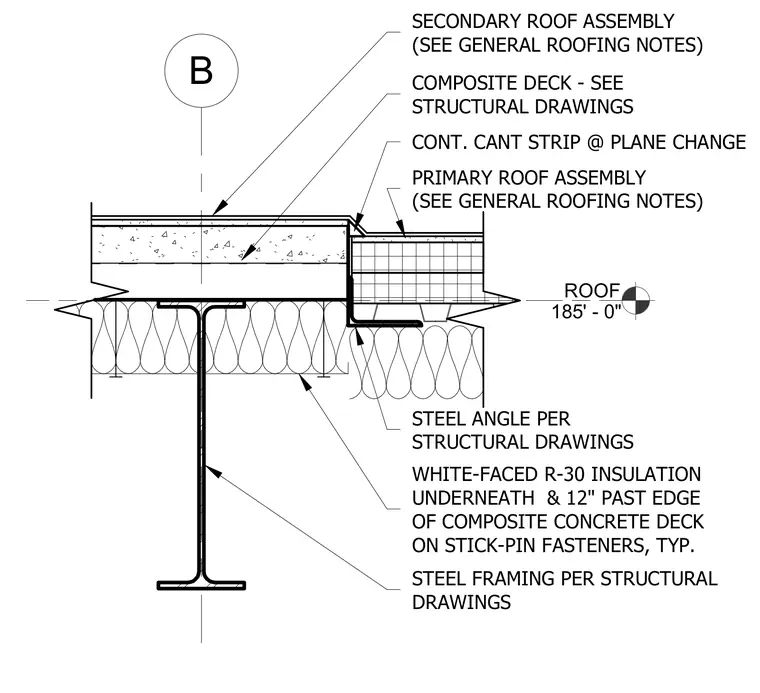

A composite concrete deck bears on steel framing per structural drawings at an elevation of 185'-0". A continuous cant strip is installed at the plane change between the primary and secondary roof assemblies. White-faced R-30 insulation is secured underneath and extends 12 inches past the edge of the composite concrete deck using stick-pin fasteners. A steel angle supports the secondary roof assembly at the step down.
B ROOF 185' - 0" COMPOSITE DECK - SEE STRUCTURAL DRAWINGS CONT. CANT STRIP @ PLANE CHANGE WHITE-FACED R-30 INSULATION UNDERNEATH & 12" PAST EDGE OF COMPOSITE CONCRETE DECK ON STICK-PIN FASTENERS, TYP. STEEL FRAMING PER STRUCTURAL DRAWINGS PRIMARY ROOF ASSEMBLY (SEE GENERAL ROOFING NOTES) STEEL ANGLE PER STRUCTURAL DRAWINGS SECONDARY ROOF ASSEMBLY (SEE GENERAL ROOFING NOTES)
