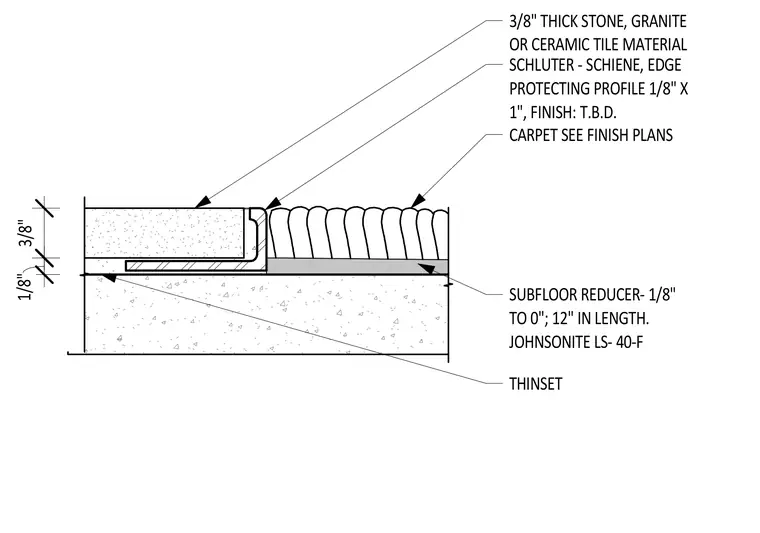

A three-eighths-inch thick stone, granite, or ceramic tile material is set in thinset over the subfloor and terminated with a Schluter-Schiene edge protecting profile measuring one-eighth by one inch with a finish to be determined. Adjoining carpet is installed with a subfloor reducer measuring one-eighth to zero inches by twelve inches in length, utilizing a Johnsonite LS-40-F base profile.
THINSET CARPET SEE FINISH PLANS SCHLUTER - SCHIENE, EDGE PROTECTING PROFILE 1/8" X 1", FINISH: T.B.D. SUBFLOOR REDUCER- 1/8" TO 0"; 12" IN LENGTH. JOHNSONITE LS- 40-F 3/8" THICK STONE, GRANITE OR CERAMIC TILE MATERIAL 3/8" 1/8"
