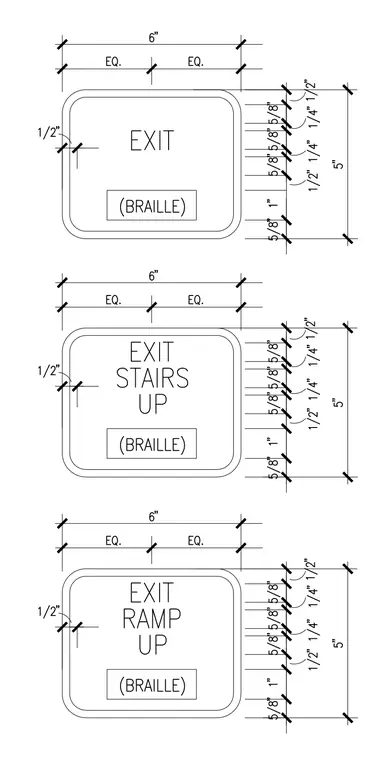

Three rectangular signage details with rounded corners indicate exit identification requirements including standard exit, exit stairs up, and exit ramp up. Each sign measures six inches wide by five inches high and incorporates a tactile Braille text block near the bottom. Detailed vertical and horizontal dimensions establish precise spacing for lettering lines and text placement. Symmetrical margins of one-half inch and one inch define the internal text positioning.
