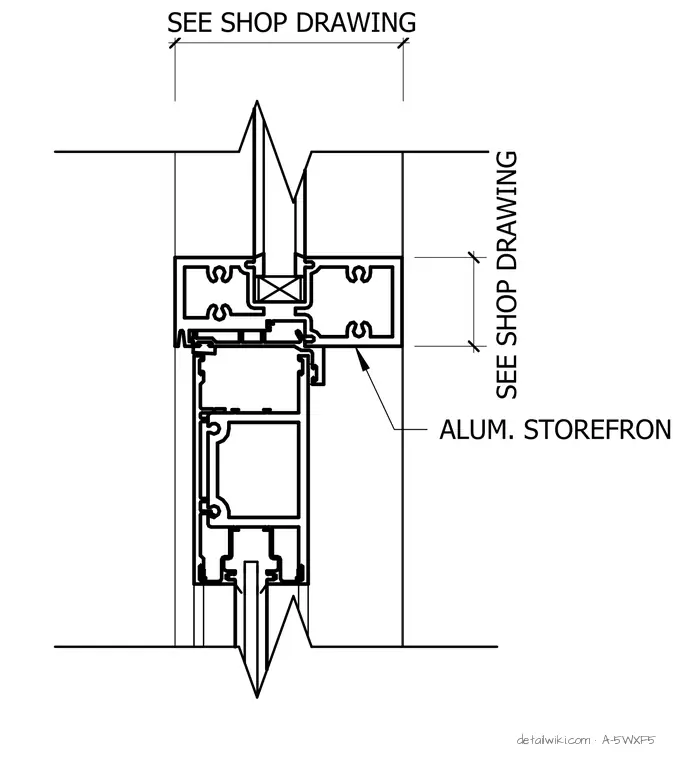

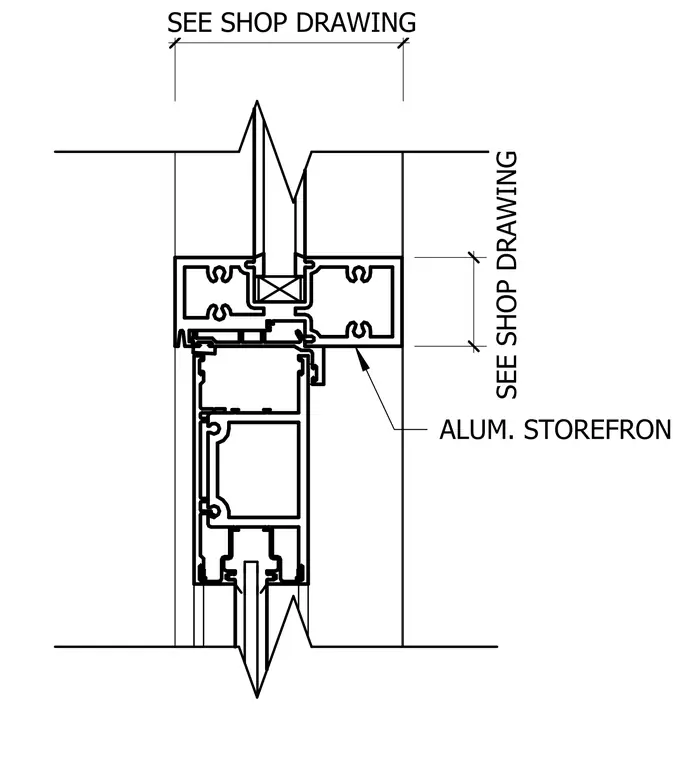

Aluminum storefront door jamb assembly. The door frame profile integrates with the adjacent storefront framing system, with specific dimensions and weather gasket configurations deferred to the manufacturer's shop drawings. The assembly consists of the primary aluminum door stile and the adjacent storefront mullion, providing the profile for the door swing and glazing interface.
Text on the drawing
WEATHER GASKET SEE SHOP DRAWING SEE SHOP DRAWING
