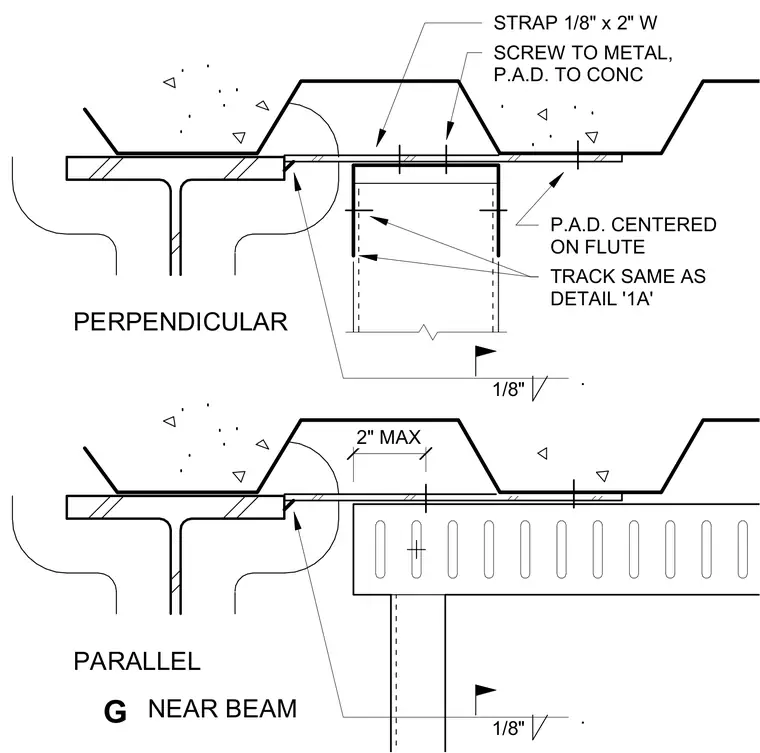

A 1/8 inch by 2 inch wide steel strap ties the metal deck and concrete fill assembly to a cold-formed metal track matching Detail 1A. The strap is centered on the deck flute with a maximum 2 inch offset and fastened to the metal framing with screws. A 1/8 inch fillet weld connects the assembly near the structural beam flange.
PERPENDICULAR PARALLEL 2" MAX P.A.D. CENTERED ON FLUTE TRACK SAME AS DETAIL '1A' SCREW TO METAL, P.A.D. TO CONC STRAP 1/8" x 2" W 1/8" . 1/8" . NEAR BEAM G
