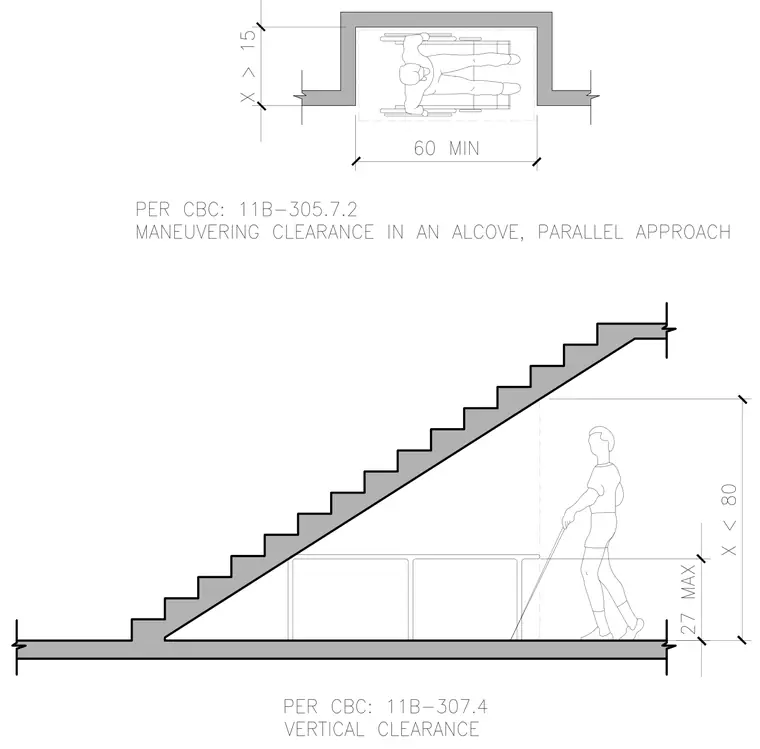

An alcove parallel approach provides a maneuvering clearance with a minimum width of sixty inches and a depth dimension greater than fifteen inches per California Building Code section 11B-305.7.2. A vertical clearance diagram shows a maximum twenty-seven inch limit for low-hanging elements or railings and a minimum eighty inch vertical height restriction below stairs per California Building Code section 11B-307.4.
