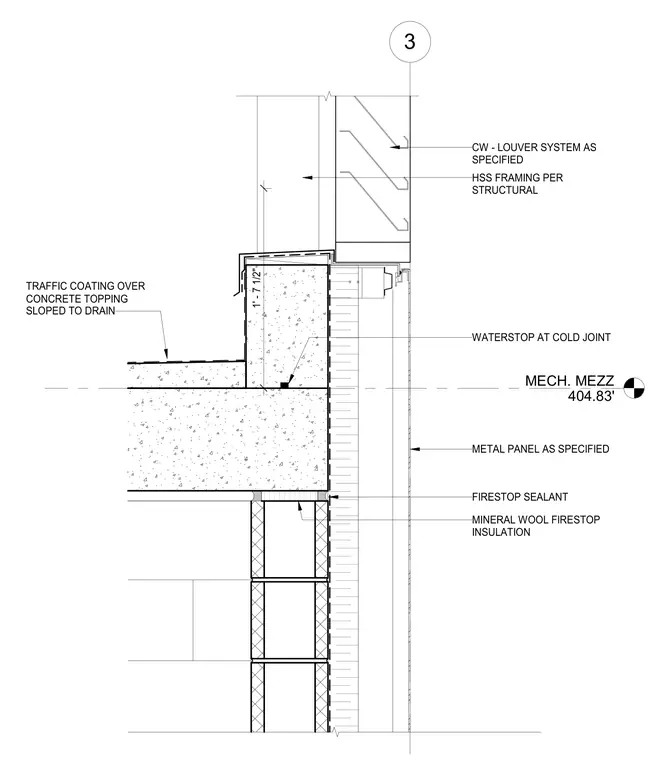

A vertical transition between a louver system and metal panel cladding occurs at a mechanical mezzanine level. The assembly is supported by hollow structural section framing and bears against a concrete slab with a traffic-coated topping sloped to drain. Mineral wool firestop insulation and firestop sealant are installed at the slab edge behind the exterior metal panels. A waterstop is provided at the concrete cold joint.
3 MECH. MEZZ 404.83' CW - LOUVER SYSTEM AS SPECIFIED HSS FRAMING PER STRUCTURAL TRAFFIC COATING OVER CONCRETE TOPPING SLOPED TO DRAIN METAL PANEL AS SPECIFIED FIRESTOP SEALANT MINERAL WOOL FIRESTOP INSULATION WATERSTOP AT COLD JOINT 1' - 7 1/2"
