Architectural · A-5WK55

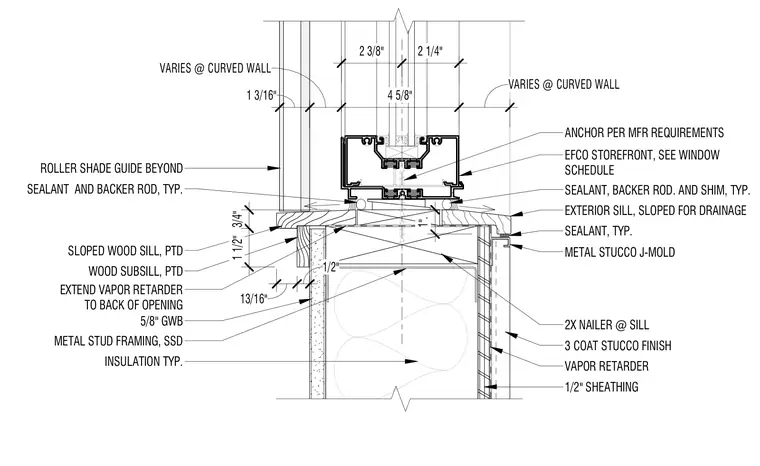

Classroom Window Sill Detail at Stucco Wall

Materials

Cold-formed Steel Timber / Wood Metal (misc.)Gypsum / Drywall EIFS / Plaster / Stucco

Elements

Walls Windows Storefronts Insulation Anchors / Embeds Roof / Floor Openings

About this detail

An Efco storefront window assembly sits atop a painted sloped wood sill and wood subsill, anchored per manufacturer requirements over a 2x nailer at the sill. The exterior wall consists of a three-coat stucco finish over a vapor retarder, one-half-inch sheathing, insulation, and metal stud framing with a five-eighths-inch gypsum wallboard interior finish. A metal stucco J-mold terminates the exterior finish beneath the wood sill. Joints between the storefront frame, exterior sill, and wall finish are sealed with backer rod and sealant, and a vapor retarder extends to the back of the rough opening.
