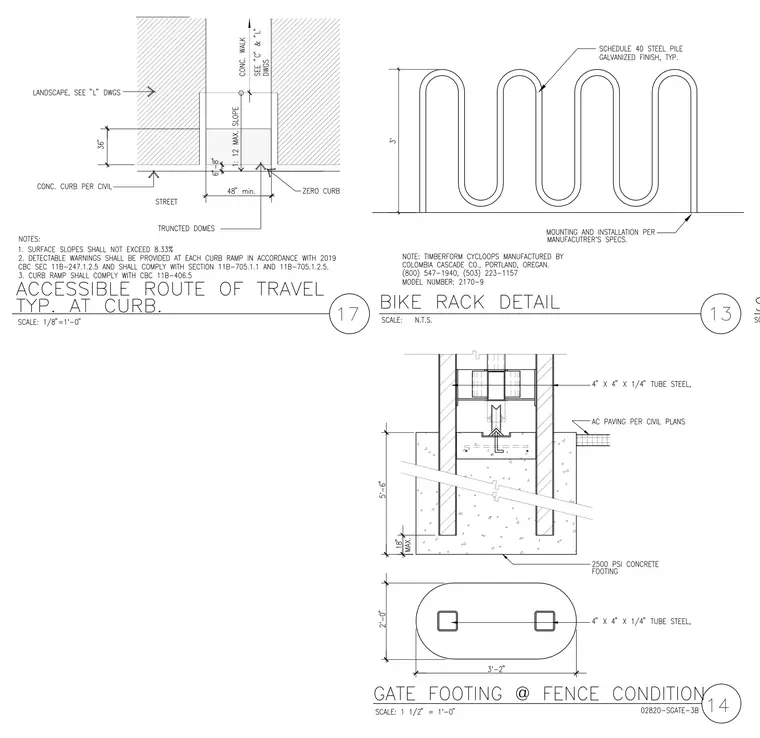

An accessible route features a concrete curb ramp with a truncated domes area, a 48-inch minimum width, a 1-in-12 maximum slope, and a zero curb transition to the street. A schedule forty steel pipe bicycle rack includes a galvanized finish and mounting per manufacturer specifications. Four-by-four-inch by one-quarter-inch hollow structural section steel posts are set in a twenty-five hundred psi concrete footing measuring three feet two inches by two feet.
