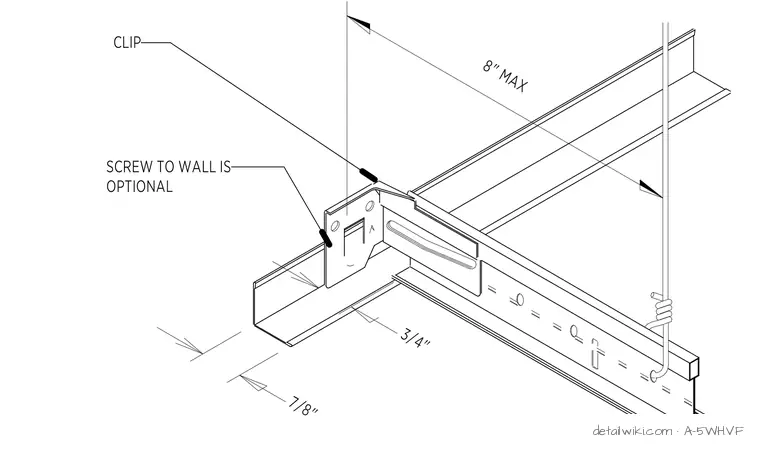

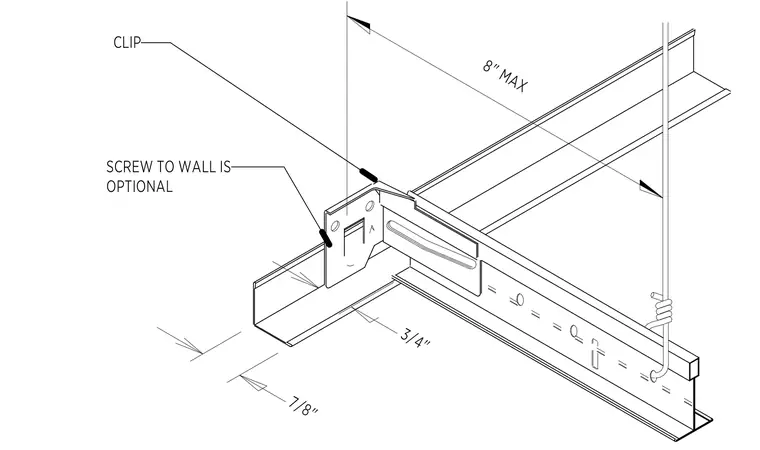

This assembly features a seismic clip connecting a suspended ceiling main runner to a perimeter wall angle. The clip is positioned to allow for a maximum eight-inch spacing from the wall. A three-quarter-inch clearance is maintained between the end of the ceiling runner and the wall angle, with a seven-eighths-inch dimension indicated for the wall angle flange. The connection to the wall is noted as optional, allowing for flexibility in installation based on specific seismic design requirements.
