Architectural · A-5WG62

Fire-Rated Wall Partition Head of Wall at Metal Deck

Materials

Gypsum / Drywall

Elements

Walls Partitions Decks Anchors / Embeds

Connections

Embed Plate

About this detail

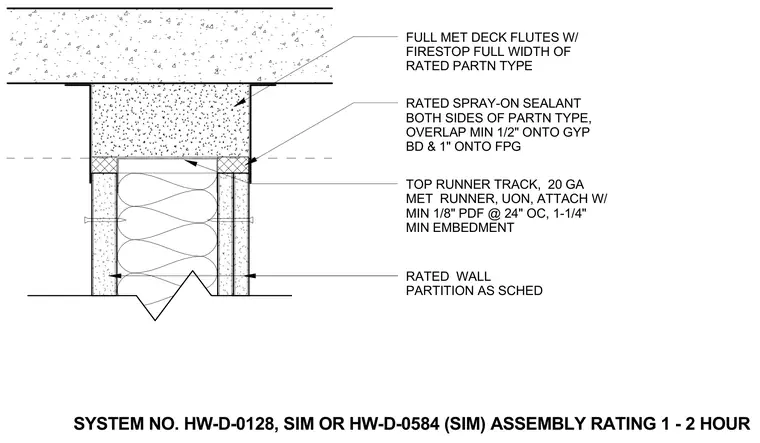

A rated wall partition terminates below a concrete metal deck with a twenty-gauge metal top runner track. The top track is secured with minimum one-eighth-inch power-driven fasteners at twenty-four inches on center with a minimum one-and-one-quarter-inch embedment. Full metal deck flutes are filled with firestop material spanning the full width of the rated partition type. Rated spray-on sealant is applied to both sides of the partition, overlapping a minimum of one-half inch onto the gypsum board and one inch onto the fireproofing system.
