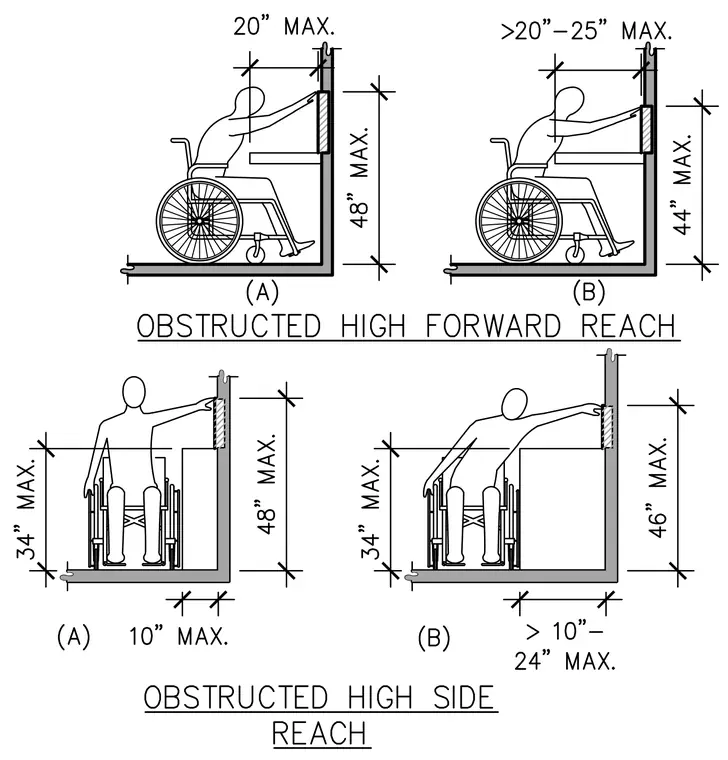

Accessibility diagrams detailing forward and side reach ranges for individuals in wheelchairs, including obstructed high forward reach and obstructed high side reach configurations. For obstructed high forward reach over a maximum 20-inch depth obstruction, the maximum allowable height is 48 inches, reducing to 44 inches when the obstruction depth is greater than 20 inches up to 25 inches maximum. For obstructed high side reach, side reaches over an obstruction up to 10 inches maximum depth allow a maximum height of 48 inches with a 34-inch maximum height over the obstruction, while obstructions greater than 10 inches up to 24 inches maximum depth limit the reach height to 46 inches maximum.
