Grooved basalt wall panels are secured to an interior partition assembly using masonry anchors with shims as needed. The interior partition studs are sized to coordinate with the stone panel loads. Maximum panel size is eight feet, featuring joint dimensions of one inch and two inches. The cladding assembly interfaces with the interior floor finish and the interior soffit as scheduled.

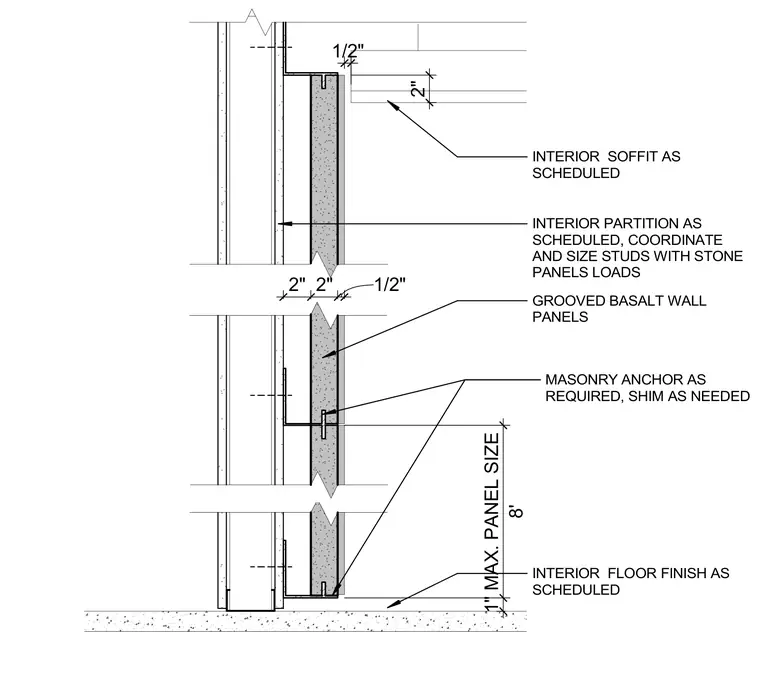

INTERIOR PARTITION AS SCHEDULED, COORDINATE AND SIZE STUDS WITH STONE PANELS LOADS MASONRY ANCHOR AS REQUIRED, SHIM AS NEEDED 1" 8' MAX. PANEL SIZE 2" 2" 1/2" INTERIOR SOFFIT AS SCHEDULED INTERIOR FLOOR FINISH AS SCHEDULED 2" 1/2" GROOVED BASALT WALL PANELS
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
