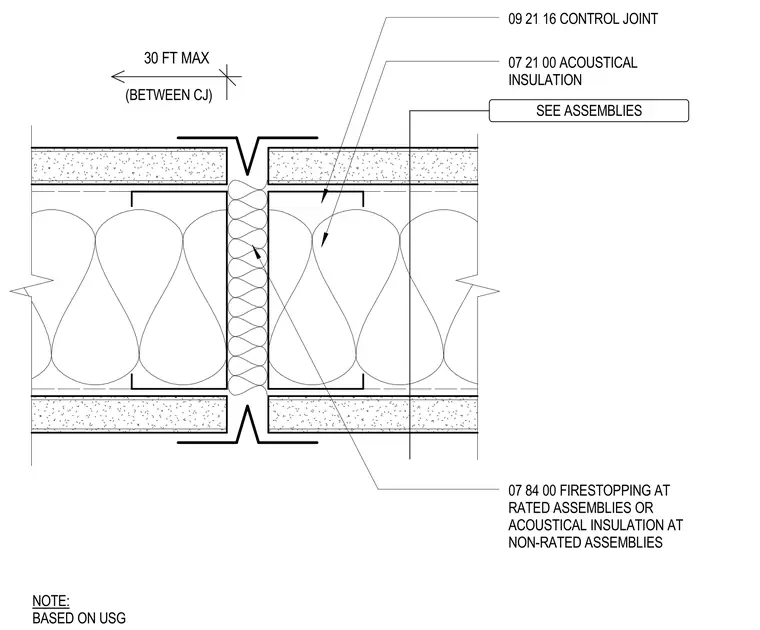

This control joint detail accommodates wall movement in gypsum board partitions with a maximum spacing of thirty feet between joints. The gap is filled with either firestopping at rated assemblies or acoustical insulation at non-rated assemblies, supplemented by acoustical insulation within the cavity per the specified assemblies. A surface-mounted control joint profile is centered over the joint between the gypsum board panels.
NOTE: BASED ON USG 07 84 00 FIRESTOPPING AT RATED ASSEMBLIES OR ACOUSTICAL INSULATION AT NON-RATED ASSEMBLIES 07 21 00 ACOUSTICAL INSULATION SEE ASSEMBLIES (BETWEEN CJ) 30 FT MAX 09 21 16 CONTROL JOINT
