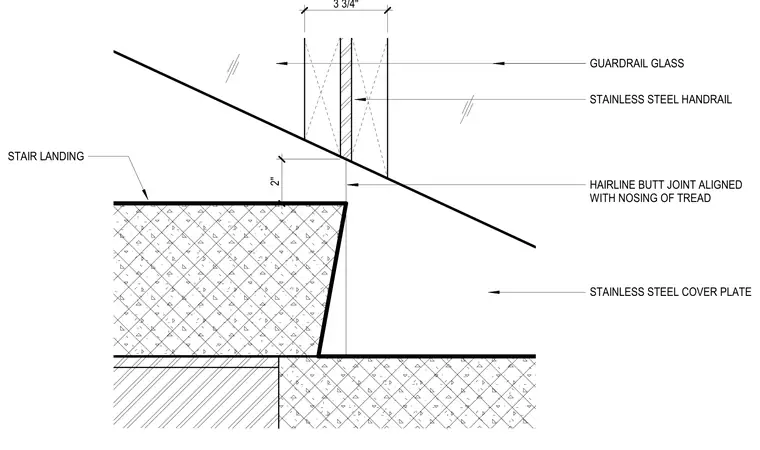

The stair landing edge features a stainless steel cover plate with a hairline butt joint aligned with the nosing of the tread. A guardrail glass assembly with a stainless steel handrail rises from the landing edge. The glass panel is three and three-quarters inches thick and sits two inches above the stair landing level.
STAINLESS STEEL COVER PLATE HAIRLINE BUTT JOINT ALIGNED WITH NOSING OF TREAD STAINLESS STEEL HANDRAIL GUARDRAIL GLASS 3 3 / 4 " 2 " STAIR LANDING
