Six-inch C-H studs run continuously to the underside of the structure above, with gauge and spacing sized per the structural schedule. Sound attenuation batts measuring three and one-half inches minimum fill the stud cavities. One layer of five-eighths-inch Type X gypsum wallboard finishes the room side of the partition. One layer of five-eighths-inch Type X gypsum wallboard over a one-inch liner panel finishes out the stair shaft side. A scheduled base finishes the floor junction below.

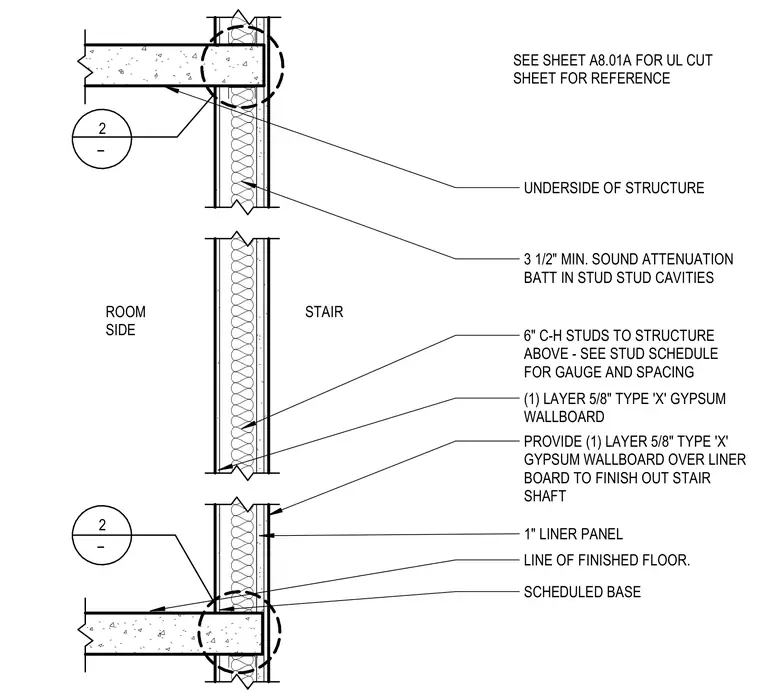

3 1/2" MIN. SOUND ATTENUATION BATT IN STUD STUD CAVITIES 6" C-H STUDS TO STRUCTURE ABOVE - SEE STUD SCHEDULE FOR GAUGE AND SPACING 1" LINER PANEL LINE OF FINISHED FLOOR. SCHEDULED BASE 2 2 UNDERSIDE OF STRUCTURE SEE SHEET A8.01A FOR UL CUT SHEET FOR REFERENCE (1) LAYER 5/8" TYPE 'X' GYPSUM WALLBOARD STAIR ROOM SIDE PROVIDE (1) LAYER 5/8" TYPE 'X' GYPSUM WALLBOARD OVER LINER BOARD TO FINISH OUT STAIR SHAFT
