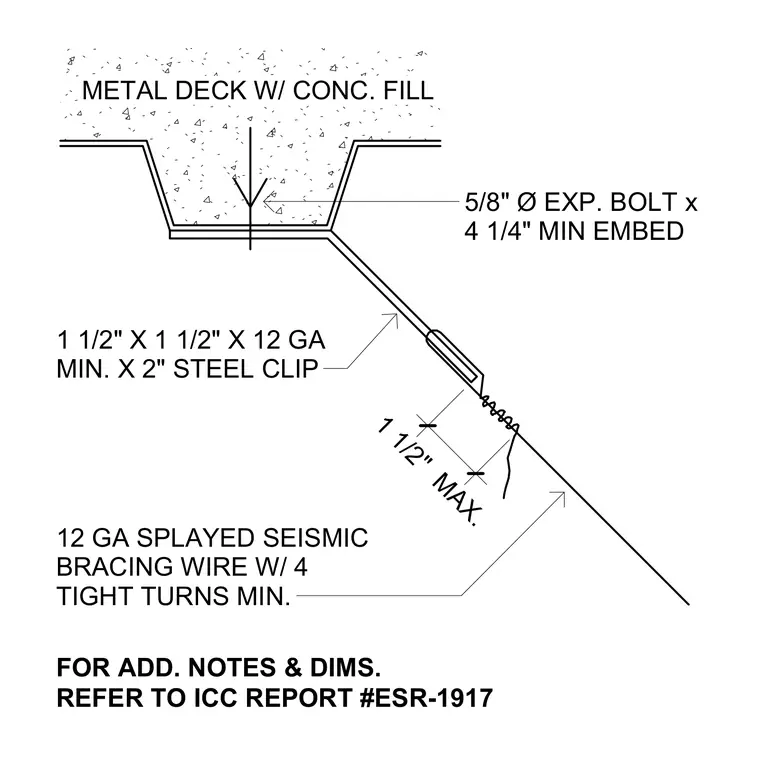

A twelve-gauge splayed seismic bracing wire is secured to a concrete-filled metal deck using a one-and-a-half-inch by one-and-a-half-inch by twelve-gauge steel clip. The clip is fastened into the concrete deck fill with a five-eighths-inch diameter expansion bolt requiring a four-and-a-quarter-inch minimum embedment. The bracing wire features four tight turns minimum with a maximum one-and-a-half-inch tail. Additional notes and dimensions refer to ICC report number ESR-1917.
1 1/2" MAX. FOR ADD. NOTES & DIMS. REFER TO ICC REPORT #ESR-1917 METAL DECK W/ CONC. FILL 5/8" Ø EXP. BOLT x 4 1/4" MIN EMBED 1 1/2" X 1 1/2" X 12 GA MIN. X 2" STEEL CLIP 12 GA SPLAYED SEISMIC BRACING WIRE W/ 4 TIGHT TURNS MIN.
