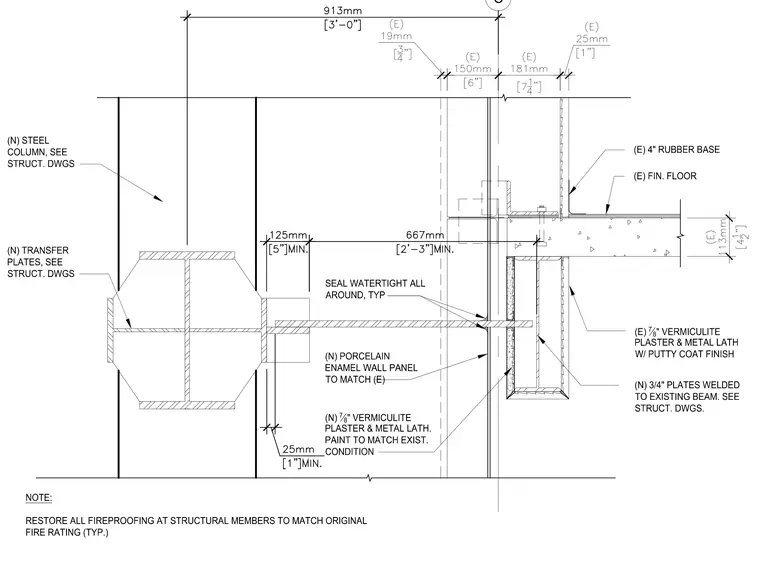

An existing structural steel column receives new three-quarter-inch steel transfer plates welded to its flange, which extend horizontally to connect with existing steel framing. A new porcelain enamel wall panel is installed outboard of the structure with a watertight seal applied all around the joint. Interior finishes include seven-eighths-inch vermiculite plaster over metal lath finished with a putty coat, matching existing conditions. At the floor level, an existing concrete slab with finished flooring features a four-inch rubber base. All fireproofing at structural members must be restored to match the original fire rating.
C (E) 4" RUBBER BASE (E) FIN. FLOOR NOTE: RESTORE ALL FIREPROOFING AT STRUCTURAL MEMBERS TO MATCH ORIGINAL FIRE RATING (TYP.) (N) TRANSFER PLATES, SEE STRUCT. DWGS (N) STEEL COLUMN, SEE STRUCT. DWGS (E) 78 " VERMICULITE PLASTER & METAL LATH W/ PUTTY COAT FINISH (N) 3/4" PLATES WELDED TO EXISTING BEAM. SEE STRUCT. DWGS. (N) 78 " VERMICULITE PLASTER & METAL LATH. PAINT TO MATCH EXIST. CONDITION SEAL WATERTIGHT ALL AROUND, TYP (N) PORCELAIN ENAMEL WALL PANEL TO MATCH (E)
