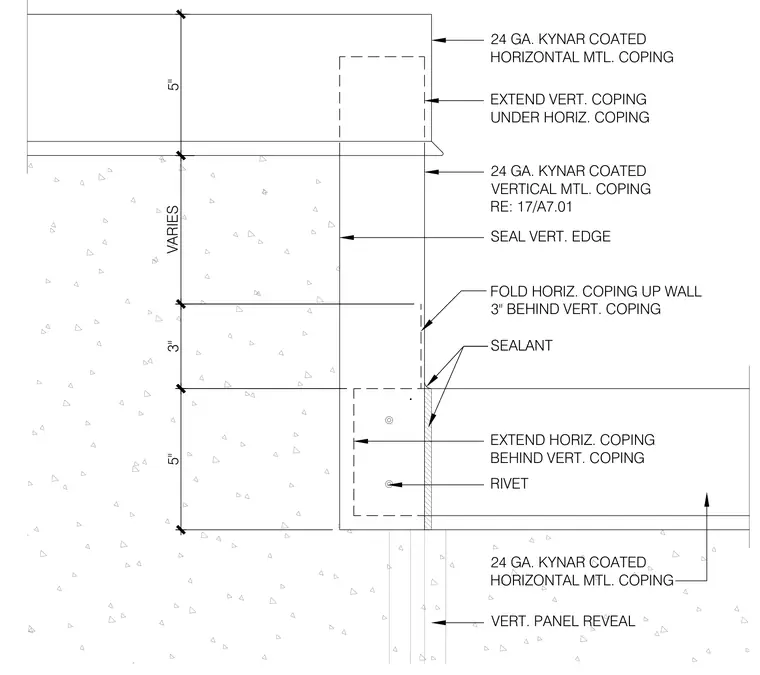

Twenty-four gauge Kynar-coated horizontal and vertical metal coping components intersect at the junction. The vertical coping extends underneath the horizontal coping, while the horizontal coping folds up the wall three inches behind the vertical coping. Rivets secure the overlapping sections, and sealant is applied along the vertical edge and joints. A vertical panel reveal is positioned below the coping assembly.
24 GA. KYNAR COATED HORIZONTAL MTL. COPING 24 GA. KYNAR COATED VERTICAL MTL. COPING RE: 17/A7.01 EXTEND VERT. COPING UNDER HORIZ. COPING FOLD HORIZ. COPING UP WALL 3" BEHIND VERT. COPING 5" 3" VARIES 5" 24 GA. KYNAR COATED HORIZONTAL MTL. COPING VERT. PANEL REVEAL EXTEND HORIZ. COPING BEHIND VERT. COPING SEALANT SEAL VERT. EDGE RIVET
