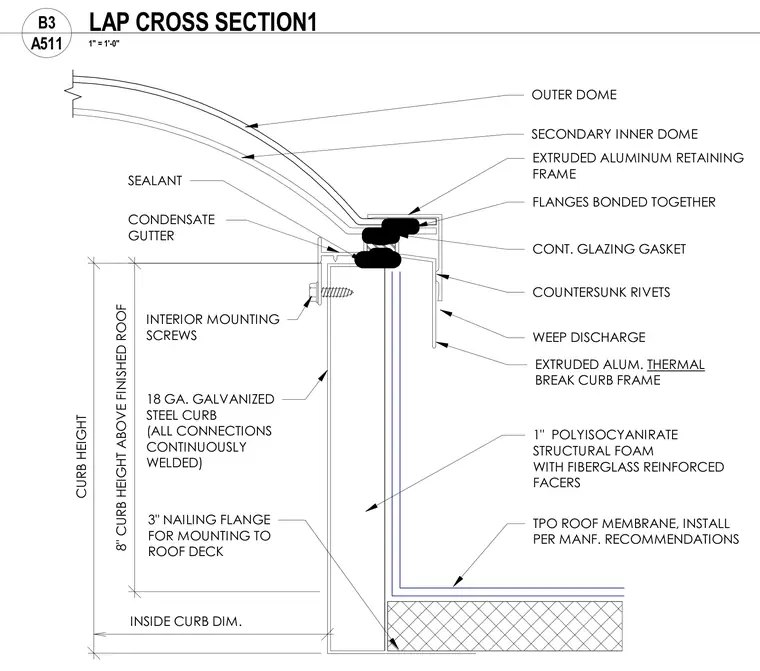

An eighteen-gauge galvanized steel curb with continuously welded connections supports an extruded aluminum thermal break curb frame and double dome glazing assembly. The curb features a three-inch nailing flange for mounting to the roof deck over one-inch polyisocyanurate structural foam with fiberglass reinforced facers and a TPO roof membrane. The glazing system consists of an outer dome and a secondary inner dome with flanges bonded together, secured by an extruded aluminum retaining frame, countersunk rivets, and continuous glazing gaskets. A condensate gutter with weep discharge and sealant manages moisture collection at the curb interface, anchored by interior mounting screws.
INSIDE CURB DIM. CURB HEIGHT 8" CURB HEIGHT ABOVE FINISHED ROOF INTERIOR MOUNTING SCREWS 18 GA. GALVANIZED STEEL CURB (ALL CONNECTIONS CONTINUOUSLY WELDED) CONDENSATE GUTTER SECONDARY INNER DOME FLANGES BONDED TOGETHER WEEP DISCHARGE SEALANT CONT. GLAZING GASKET 3" NAILING FLANGE FOR MOUNTING TO ROOF DECK 1" POLYISOCYANIRATE STRUCTURAL FOAM WITH FIBERGLASS REINFORCED FACERS OUTER DOME EXTRUDED ALUMINUM RETAINING FRAME TPO ROOF MEMBRANE, INSTALL PER MANF. RECOMMENDATIONS EXTRUDED ALUM. THERMAL BREAK CURB FRAME COUNTERSUNK RIVETS 1" = 1'-0" A511 B3 LAP CROSS SECTION1 } P-I
